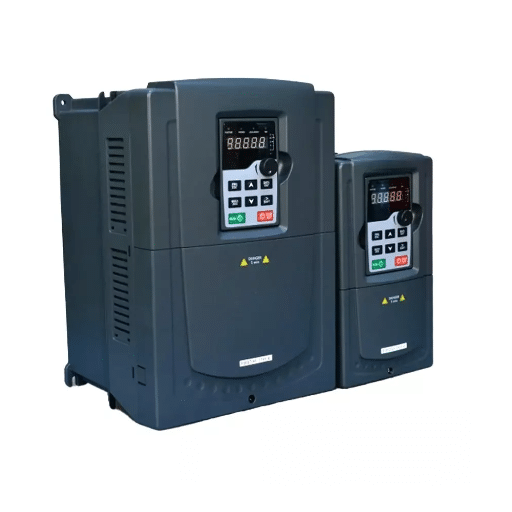

VFD Auto Tuning: How to Tune a Drive for Vector Control

VFD auto tuning is an automated process in which the variable frequency drive measures the connected motor’s electrical characteristics and updates its internal control model for better torque, speed regulation, and stability. If you are running the drive in sensorless vector, closed-loop vector, or direct torque control mode, auto-tuning is usually the difference between smooth performance and repeated stalls.

The drive was the right size, the wiring was correct, and the motor nameplate data was entered. But the extruder still stalled below 2 Hz. In 2024, a maintenance team in Ohio faced exactly this situation with a 75-HP drive on a plastics extruder. The drive had been left in V/Hz control. Switching to sensorless vector control and running VFD auto tuning fixed the stalls and cut scrap by 12% in the first month. The hardware did not change. Only the control model did.

In this guide, you will learn what VFD auto tuning is, how static vs dynamic VFD auto tuning compares, and the exact VFD autotune procedure for ABB, Siemens, Delta, Mitsubishi, Yaskawa, LS, and INVT drives. You will also see a cross-manufacturer parameter cheat sheet, a safety checklist, and a troubleshooting guide for when auto-tuning fails.

Key Takeaways

• VFD auto tuning measures stator resistance, rotor resistance, leakage inductance, magnetizing inductance, and no-load current to build an accurate motor model.
• Static auto-tuning keeps the motor shaft stationary and can be done with the load coupled; rotational auto-tuning spins the motor and usually requires the load to be uncoupled for the best results.
• VFD auto tuning is required for sensorless vector auto tuning, closed-loop vector, and direct torque control; simple V/Hz control can often run without it.
• Always enter correct motor nameplate data, select the right control mode, lock out and tag out the system, and verify DC bus discharge before starting the routine.
• If VFD auto tuning fails, check nameplate data, load coupling, control mode selection, motor cable length, wiring tightness, and incoming power balance.

What Is VFD Auto Tuning?

VFD auto tuning, also called motor identification, autotune, self-commissioning, or a motor learning routine, is the process by which the drive automatically measures the motor’s electrical parameters. The drive injects test signals into the motor windings, measures the response, and writes the results into its own parameter memory.

The parameters the drive typically identifies include:

• Stator resistance (Rs or R1): the resistance of the stator windings.
• Rotor resistance (Rr or R2): the resistance of the rotor circuit referred to the stator.
• Leakage inductance (Lσ or Lx): the inductance that does not contribute to useful flux.
• Magnetizing inductance (Lm): the inductance that builds the magnetic field in the air gap.
• No-load current: the current needed to magnetize the motor at rated voltage and frequency.
• Motor inertia: the rotating mass of the motor and load, measured during rotational tuning.
• Back-EMF, Ld, and Lq: measured for permanent magnet motors during PM auto-tuning.

This is different from simply entering the motor nameplate data. Nameplate data tells the drive the motor’s rated voltage, current, frequency, speed, and power. VFD motor identification tells the drive how that specific motor actually behaves electrically. Without the measured data, the drive’s flux and torque estimators are only guesses.

Auto-tuning is necessary whenever you need precise torque or speed control. It is optional for simple pump and fan applications that run in V/Hz control. For a deeper explanation of when each control mode needs tuning, see our article on VFD control modes explained.

Static vs Dynamic VFD Auto Tuning

Not every VFD auto tuning routine does the same thing. The two main types are static tuning and rotational tuning. Choosing the wrong one is a common reason auto-tuning results are poor.

Static / Stationary Auto Tuning

In static auto-tuning, the motor shaft does not move. The drive applies low-level DC and low-frequency AC test signals to the windings and measures resistance and inductance. Because the shaft stays still, this method can usually be performed with the load still coupled to the motor.

Static tuning is faster and safer than rotational tuning. It is a good choice when the load cannot be uncoupled, when rotation would damage the process, or when you only need basic parameter identification for moderate-performance sensorless vector control. The downside is that static tuning cannot measure saturation characteristics, no-load current, or inertia accurately.

Rotational / Dynamic Auto Tuning

In rotational auto-tuning, the drive spins the motor during the routine. It measures magnetizing current, saturation curves, and motor inertia. Some drives also use this step to tune the speed-controller PI gains.

Rotational tuning gives the most accurate motor model and the best low-speed torque performance. For high-performance sensorless vector control, closed-loop vector control, or direct torque control, rotational tuning is preferred. The motor should normally be uncoupled from the load. If the load is coupled, the inertia measurement will include the mechanical load and may distort the speed-loop tuning.

The performance difference is measurable. V/Hz control typically holds speed within ±2–3% under load changes. A well-tuned sensorless vector drive improves that to about ±0.5%, while closed-loop vector with encoder feedback can reach ±0.01%. For low-speed torque, sensorless vector auto-tuning enables 150–200% rated torque at 0.3–0.5 Hz, which is why extruders and cranes notice the difference immediately.

When to Choose Static vs Rotational Tuning

Situation	Recommended Method	Why
Load cannot be uncoupled	Static tuning	Avoids moving the driven equipment
Pump or fan in V/Hz upgrade to SVC	Static or rotational	Static is often enough; rotational gives better low-speed torque
Extruder, mixer, winder, crane	Rotational tuning	Needs accurate inertia and torque model
PM motor with encoder	PM-specific tuning	Needs pole-angle identification
First commissioning of vector drive	Rotational tuning	Best baseline for future operation

At a water-treatment pump station in Arizona, the maintenance team could not uncouple the pump from the motor without draining the line. They ran static VFD auto tuning with the load coupled and the drive controlled the pump adequately for normal duty. Six months later, during a scheduled outage, they re-ran rotational tuning with the motor uncoupled. Low-speed efficiency improved, and the drive drew about 4% less current at 25 Hz. The load coupling had hidden part of the motor model from the first routine.

Permanent Magnet Motor Auto Tuning Note

Permanent magnet motors need additional steps beyond standard induction motor tuning. The drive must identify the rotor magnetic pole position, measure d-axis and q-axis inductance, and often measure back-EMF. This is sometimes called pole-angle identification or PM motor learning. Skipping this step is a common cause of immediate overcurrent trips when a PM motor is first started.

A conveyor integrator in Michigan learned this the hard way. The project used a permanent magnet servo motor retrofitted with a general-purpose vector drive. The team entered the motor nameplate data and started the drive in sensorless vector mode. The drive tripped on overcurrent before the belt moved one inch. After running the PM VFD auto tuning routine, including pole-angle identification, the conveyor started smoothly and held tension within 1%. The difference was not the motor data; it was the missing pole-angle alignment.

VFD Auto Tuning Workflow

Every VFD autotune procedure follows the same general workflow. The exact parameter numbers differ by manufacturer, but the sequence is the same.

1. Verify motor nameplate data. Check the motor rating plate for rated voltage, current, frequency, speed, power, poles, and power factor.
2. Confirm correct wiring and rotation. Make sure the motor leads are tight and the phase rotation matches the driven equipment.
3. Lock out, tag out, and discharge the DC bus. Remove power, verify zero energy state, and wait for the DC bus capacitors to discharge.
4. Select the control mode. Choose V/Hz, sensorless vector, closed-loop vector, or direct torque control based on the application.
5. Enter the motor nameplate parameters. Input rated voltage, current, frequency, speed, power, and poles into the drive.
6. Choose static or rotational tuning. Match the method to the application and the load coupling.
7. Run the auto-tuning routine. Follow the drive’s prompts; do not interrupt power during the routine.
8. Save parameters to non-volatile memory. Many drives store tuning results only in RAM until you explicitly save.
9. Verify motor rotation at low speed. Run a brief jog at 1 to 5 Hz and confirm direction.
10. Test under load and monitor for faults. Gradually increase speed and load while watching current, vibration, and temperature.

For the broader commissioning sequence that comes before and after tuning, see our guide to VFD commissioning steps.

VFD Auto Tuning by Manufacturer

The following sections describe the typical VFD autotune procedure for the most common drive families. Always confirm the exact parameter numbers in the latest drive manual before commissioning.

ABB VFD Auto Tuning (ACS580 / ACS880)

For ABB drives, VFD motor identification is called the ID run.

1. Enter motor nameplate data in parameter group 99:

• 99.05 motor nominal voltage
• 99.06 motor nominal current
• 99.07 motor nominal frequency
• 99.08 motor nominal speed
• 99.09 motor nominal power

1. Select the motor control mode in 99.04.
2. Start the ID run from the keypad or commissioning tool.
3. For closed-loop vector operation, autophasing runs automatically after the ID run.
4. For speed-controller autotune, set 25.33 Speed controller autotune and select the mode in 25.34.
5. Save parameters and verify rotation.

Siemens VFD Auto Tuning (SINAMICS G120)

Siemens calls the process motor data identification.

1. Enter motor data:

• P0304 rated motor voltage
• P0305 rated motor current
• P0307 rated motor power
• P0310 rated motor frequency
• P0311 rated motor speed

1. Set P1900 = 1 for standstill measurement, or P1900 = 2 for standstill plus rotating measurement.
2. Finish quick commissioning with P3900 = 1, 2, or 3.
3. Alarm A07991 appears when identification is pending.
4. Give an ON command in HAND mode; the drive runs the routine.
5. For rotating measurement, A07991 may appear again. Run a second ON cycle.
6. Save RAM to ROM.

Delta VFD Auto Tuning (MS300 / C2000 / VFD-B / VFD-V)

Delta drives use a single tuning parameter with mode selection.

MS300 / C2000:

1. Reset parameters if needed: Pr.00-02 = 9 or 10.
2. Select control mode in Pr.00-10 / 00-11.
3. Enter induction motor data in Pr.05-01 to 05-05.
4. Set Pr.05-00 tuning method: 1 = dynamic, 2 = static, 5 = PM rolling, 13 = PM static.
5. Press RUN and wait for completion.
6. Save parameters.

VFD-B:

• Set Pr.07-05: 01 for stator resistance only, 02 for stator resistance plus no-load test.
• Results appear in Pr.07-01 and Pr.07-06.

VFD-V:

• Set Pr.05-00 = 1 to measure R1, R2, Lm, Lc, and no-load current.
• Results are stored in Pr.05-05 to 05-09.

Mitsubishi VFD Auto Tuning (FR-A800 / FR-D700)

Mitsubishi uses offline auto-tuning, set through Pr.96.

FR-A800:

1. Select vector control method.
2. Enter motor parameters Pr.71, Pr.80, Pr.81, Pr.83, and Pr.84.
3. For non-Mitsubishi motors, set inertia parameters Pr.707 and Pr.724.
4. Set Pr.96 to the desired offline auto-tuning mode.
5. Start auto-tuning and wait for completion.
6. Verify with a test run.

FR-D720 / D700:

1. Enter motor data in Pr.71, Pr.80, Pr.83, Pr.84, and Pr.9.
2. Set Pr.96 = 11 for offline auto tuning without rotation.
3. Give the start command; the drive writes motor constants such as Pr.90.
4. Verify operation.

Yaskawa Auto Tuning (V1000 / GA700)

Yaskawa uses the T1 parameters for induction motor auto-tuning.

V1000:

1. Set A1-01 = 2 for advanced access level.
2. Ensure safe disable inputs are closed.
3. Set T1-01 tuning mode:

• 0 = rotational auto-tuning for open-loop vector
• 2 = terminal resistance only
• 3 = rotational auto-tuning for energy saving

1. Enter motor data in T1-02 through T1-07.
2. Press RUN; wait for “End”; press STOP.
3. Auto-set parameters include E2-01 through E2-09.

GA700: follows the same T1-01 structure with a modern menu interface. PM motors use T2 auto-tuning.

LS Electric VFD Auto Tuning (iC5 / H100)

iC5 / SV008iC5-1:

1. Set F27 = 1 for auto torque boost.
2. Enter no-load current in H34.
3. Set H41 = 1 to enable auto-tuning.
4. After tuning, H42 contains the measured stator resistance.

H100: uses menu-driven parameters in BAS, ADV, and CON groups. Consult the H100 manual for exact codes.

INVT VFD Auto Tuning (Goodrive GD300 / GD350)

GD300:

1. Set motor nameplate parameters in group P02:

• P02.01 rated power
• P02.02 rated frequency
• P02.03 rated speed
• P02.04 rated voltage
• P02.05 rated current

1. Set P00.15:

• 1 = rotating autotuning
• 2 = static autotuning 1
• 3 = static autotuning 2

Press RUN; the drive updates P02.06 to P02.10.

1. Save parameters.

GD350 / GD350C: use bit-coded settings in P00.15 for basic autotuning, pole-angle autotuning, and inertia autotuning. Menu path: Menu → Motor parameter autotune.

Cross-Manufacturer Auto-Tuning Parameter Cheat Sheet

This table gives a quick reference for starting VFD auto tuning on common drive families.

Brand	Model	Tuning Parameter	Static Mode	Rotational Mode	Save Command
ABB	ACS580 / ACS880	Group 99 + ID run command	Standstill ID run	Standard / reduced ID run	Save parameters
Siemens	SINAMICS G120	P1900	1 = standstill	2 = standstill + rotating	Copy RAM to ROM
Delta	MS300 / C2000	Pr.05-00	2 = static	1 = dynamic	Pr.00-02 = 7 or keypad save
Delta	VFD-B	Pr.07-05	01 / 02	Not supported	Keypad save
Mitsubishi	FR-A800 / FR-D700	Pr.96	11 / 12 / 21	1 / 2 / 3 / 5	Keypad save
Yaskawa	V1000 / GA700	T1-01	2 = resistance only	0 / 3 = rotational	Parameter save
LS	iC5	H41	1 = auto-tune enable	Not supported	H42 stores Rs
INVT	GD300	P00.15	2 / 3	1	P00.15 save
INVT	GD350	P00.15	Bit-coded static	Bit-coded rotating	Menu save

Parameter numbers change between firmware versions. Always confirm against the latest manufacturer manual.

VFD Auto Tuning Parameters Explained

After VFD auto tuning, the drive stores measured VFD auto tuning parameters that define the motor model. Understanding these values helps when troubleshooting or when you need to compare two motors.

Stator Resistance (Rs / R1)

Stator resistance is the DC resistance of the motor stator windings. It is measured by applying a small DC and measuring the voltage drop. A higher-than-expected value can indicate loose connections, long cables, or a hot motor.

Rotor Resistance (Rr / R2)

Rotor resistance affects slip compensation and torque estimation. It is measured indirectly by applying AC signals and observing the current response. An inaccurate Rr value causes poor speed regulation under load.

Leakage Inductance (Lσ)

Leakage inductance is the inductance that does not link the stator and rotor. It influences current ripple and the drive’s current-loop response. High leakage inductance can limit how quickly the drive can change torque.

Magnetizing Inductance (Lm)

Magnetizing inductance determines how much current is needed to build flux in the motor air gap. It affects the no-load current and the efficiency of the motor model.

No-Load Current

No-load current is the current drawn by the motor at rated voltage and frequency with no mechanical load. In rotational tuning, the drive spins the motor and measures this directly. In static tuning, it may be estimated or entered manually.

Motor Inertia

Motor inertia is the rotating mass of the motor and any coupled load. It is used to tune the speed controller. An inertia value that is too high or too low causes speed overshoot or slow response to load changes.

Back-EMF, Ld, and Lq for PM Motors

Permanent magnet motors need the back-EMF constant and the d-axis and q-axis inductances. These values are used to control the PM motor without losing synchronism. Pole-angle identification aligns the drive’s electrical angle with the rotor magnets.

Common VFD Auto Tuning Mistakes

Most VFD auto tuning failures come from a short list of preventable errors. Checking these items first will save time and frustration.

• Wrong nameplate data. Even a single digit wrong in rated current or speed will distort the entire motor model.
• Load still coupled during rotational tuning. The inertia measurement will include the mechanical load and may cause poor speed-loop response.
• Wrong control mode selected. Auto-tuning in V/Hz mode will not produce the parameters needed for vector control.
• Long motor cables. Excessive cable capacitance distorts the test signals and gives incorrect resistance and inductance values.
• Unstable or imbalanced supply voltage. Voltage imbalance causes uneven current measurements and false parameter values.
• Not saving parameters after tuning. Some drives lose tuning results on power cycle unless parameters are saved explicitly.
• Skipping rotation verification. Always jog the motor at low speed after tuning to confirm correct direction and smooth operation.

For a deeper look at the parameters that commonly cause trips during commissioning, see our guide to VFD parameter settings that cause faults.

Why VFD Auto Tuning Fails (and How to Fix It)

Even when the procedure is followed, VFD auto tuning can fail. The table below lists the most common failure symptoms and the first things to check.

Symptom	Likely Cause	First Fix
Auto-tuning error / AUE	Wrong nameplate data or wrong control mode	Re-verify data and selected mode
Overcurrent during tuning	Motor still coupled, long cables, or bad insulation	Uncouple load, shorten cables, check motor
Motor not connected	Open winding, loose terminal, or contactor open	Check continuity and terminal torque
Inverter protection trip	Excessive load or supply imbalance	Check supply voltage balance and load
Motor jerks after tuning	Wrong inertia or incorrect rotation	Re-run rotational tuning, verify rotation
Motor is noisy after tuning	Current imbalance or carrier frequency too low	Check wiring, adjust carrier frequency
Tuning completes but torque is poor	Static tuning used where rotational is needed	Re-run rotational tuning with load uncoupled

If the drive trips during tuning, treat it like any other fault. Check our VFD overcurrent fault guide and broader VFD troubleshooting guide for additional diagnostic steps.

VFD Auto Tuning Safety Checklist

Auto-tuning applies voltage to the motor even when the shaft is stationary. Never treat it as a harmless test.

• Lock out and tag out the main disconnect before connecting or changing motor leads.
• Verify DC bus discharge with a meter before touching drive terminals.
• Keep personnel clear of rotating equipment during rotational tuning.
• Wear proper PPE including insulated gloves and safety glasses.
• Confirm the emergency stop circuit is functional before starting the routine.
• Use a cold motor when possible. Hot windings have higher resistance and can skew measurements.
• Do not touch the motor during tuning; voltage is present even if the shaft does not move.

VFD Auto Tuning: FAQ

What Is VFD Auto Tuning?

VFD auto tuning is an automated routine in which the drive measures the motor’s electrical parameters and builds an internal motor model. It improves torque, speed regulation, and stability in vector control modes.

When Should I Run Auto Tuning?

Run auto-tuning during initial commissioning, after replacing a motor, after restoring factory defaults, or when switching from V/Hz to sensorless vector or closed-loop vector control.

Can I Auto Tune a VFD With the Load Connected?

Yes, for static tuning. Rotational tuning should normally be done with the load uncoupled, so the drive can accurately measure motor inertia. Some drives allow loaded rotational tuning, but the results may be less accurate.

Do I Need to Uncouple the Motor for Auto Tuning?

You do not need to uncouple the motor for static tuning. Rotational tuning gives the best results when the motor is uncoupled. If uncoupling is impossible, use static tuning and accept slightly lower performance.

What Happens if I Skip Auto Tuning?

In V/Hz control, the drive will usually run without tuning. In vector or direct torque control, skipping auto-tuning leads to poor low-speed torque, speed drift, nuisance trips, and possible motor stall.

Why Is My Motor Noisy After Auto-Tuning?

Noise after tuning usually means current imbalance, incorrect motor parameters, or a carrier frequency that is too low. Re-check nameplate data, wiring, and the carrier frequency setting.

Can I Auto Tune a Permanent Magnet Motor?

Yes, but the drive must support PM motors and the routine must include pole-angle identification. PM auto-tuning measures Ld, Lq, and back-EMF in addition to resistance and inductance.

How Long Does VFD Auto Tuning Take?

Most auto-tuning routines take between 30 seconds and 5 minutes. Static tuning is usually faster than rotational tuning. PM pole-angle identification may add extra time.

Quick Reference: Should You Auto Tune?

Use this table to decide whether auto-tuning is worth the extra commissioning step for your application.

Application	Control Mode	Tuning Needed	Recommended Method
Centrifugal pump or fan	V/Hz	Optional	Static if upgrading to SVC
Constant torque load	Sensorless vector	Recommended	Rotational
Extruder or mixer	Sensorless vector	Required	Rotational
Winder or tension control	Closed-loop vector	Required	Rotational + encoder setup
Crane or hoist	Direct torque control	Required	Rotational
Permanent magnet motor	PM vector	Required	PM-specific routine

Conclusion

VFD auto tuning is the step that turns a generic drive into a drive that knows your motor. It is required for sensorless vector, closed-loop vector, and direct torque control. It is optional but beneficial for many V/Hz upgrades. The key decisions are whether to use static or rotational tuning and whether the load can be uncoupled.

Start by entering accurate motor nameplate data, choose the right control mode, and follow lockout/tagout safety. Then run the routine, save the parameters, verify rotation, and test under load. If tuning fails, re-check the nameplate data, load coupling, wiring, and power quality before blaming the drive.

For the full commissioning sequence, see our VFD commissioning steps guide. For the broader setup sequence that comes before tuning, see our complete VFD configuration guide. And if you need help selecting a vector-capable drive for your motor, our team can guide you through how to size a VFD for a motor.

Need application support or a vector-control VFD that is ready for auto-tuning? Request a drive sizing consultation or browse our VFD product range to discuss your project requirements.
