Ready to Get Your VFD Solution?
Whether you need a single drive or a complete system, we have the VFD products and engineering support to ensure your project's success.
Our Products
Professional Variable Frequency Drive Solutions
Our VFD Product Series
Explore our Variable Frequency Drives, built for precision and efficiency. From low to high voltage, they suit any industrial need, boost productivity, and save energy.
YC-1610 Low Voltage VFD
A compact, high-performance vector drive with a functional dual display. It offers rich features and flexible customization, using advanced vector and V/F control for precise, energy-saving operation in various applications.

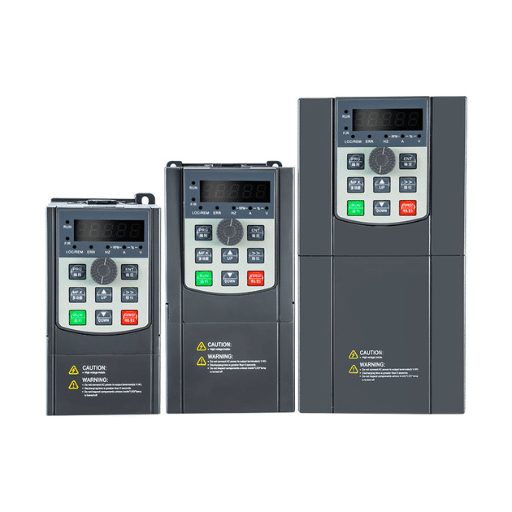

YC-1800 Low Voltage VFD
A universal, general-purpose VFD featuring superior performance and a modern, compact design. Engineered for excellent heat dissipation and versatile configuration, it is an ideal and adaptable solution for a wide array of applications.

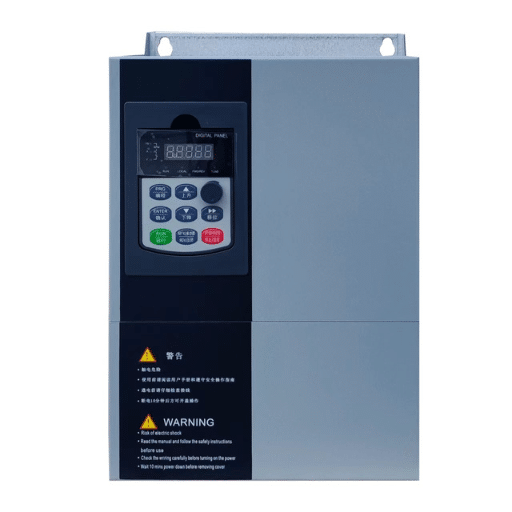

YC-5000 Low Voltage VFD
A heavy-duty vector VFD built for demanding applications. It offers high-torque output at low speeds, excellent overload capacity, and supports various encoders for precise control in industrial tasks.
G71 Water-Cooled High Voltage VFD
A high-power, high-voltage drive featuring an advanced water-cooling system for superior heat dissipation. This design ensures high power density, low noise, high efficiency, and strong adaptability to challenging industrial environments.
G71 Series High Voltage VFD
A modular high-voltage VFD platform designed for reliability and adaptability. Its well-sealed power units are ideal for harsh environments, supporting both two and four-quadrant operations for fans, pumps, hoists, and conveyors.
G74 Series High Voltage VFD
An “all-in-one” high-voltage VFD that integrates the transformer, power, and control cabinets into a single, compact unit. This design saves significant space, simplifies transportation, and ensures convenient on-site installation.
YC-1600 Low Voltage VFD
The YC-1600 Low Voltage VFD is a high-performance Variable Frequency Drive designed to optimize motor control, reduce energy consumption, and enhance operational efficiency. With advanced features like precise speed control, high efficiency, and robust compatibility.
Our Variable Frequency Drives Quick Comparison
| Model Series | Voltage Class | Power Range (kW) | Core Feature | Best For |
|---|---|---|---|---|
| YC-1610 LV VFD | Low Voltage (LV) | 0.75 - 55 | Dual Display & Compact | High-performance, compact applications |
| YC-1600 LV VFD | Low Voltage (LV) | 0.1～1000 | Precise Speed Control | Precise motor control, reduces energy consumption |
| YC-1800 LV VFD | Low Voltage (LV) | 0.75 - 30 | Universal & Cost-Effective | General-purpose, versatile use cases |
| YC-5000 LV VFD | Low Voltage (LV) | 0.75 - 1000 | Heavy-Duty & High Torque | Heavy-duty, high torque industrial loads |
| G71 Water-Cooled HV | High Voltage (HV) | 6,000 - 53,000 | Water-Cooled for High Power | Extreme high-power, low-noise environments |
| G71 Series HV VFD | High Voltage (HV) | 200 - 9,000 | Modular & Environmentally Robust | Modular, scalable heavy industrial systems |
| G74 Series HV VFD | High Voltage (HV) | 200 - 1,000 | All-in-One Integrated Design | Space-constrained, easy-installation projects |
How to Select the Right VFD
Choosing the correct VFD is critical for success. Consider these four key factors to narrow down your options and find the perfect drive for your needs.
Determine Your Voltage & Power Requirements
First, identify the motor’s nameplate voltage (e.g., 380V, 6kV, 10kV) and its power rating in kilowatts (kW) or horsepower (HP). Your VFD must match these fundamental specifications. This is the primary step in distinguishing between our low voltage and high voltage series.
Analyze the Application Load
Is your application a variable torque load like a fan or centrifugal pump, or a constant torque load like a conveyor or hoist? Does it require regenerative braking (four-quadrant)? Understanding the load profile helps determine the required overload capacity and control features.
Assess the Operating Environment
Consider the installation environment. Will the drive be in a clean, climate-controlled room, or a harsh setting with dust, moisture, or extreme temperatures? This will dictate the required cooling method (air vs. water) and enclosure protection rating (IP rating).
Define Control and Integration Needs
What level of control precision do you need? Simple speed adjustment (V/F) or precise torque and speed regulation (Vector Control)? Also, consider what communication protocols (e.g., Modbus, Profibus) are needed to integrate the VFD into your existing automation system.
Expert VFD Selection and Support
Selecting the optimal VFD requires careful consideration of your motor specifications, application requirements, environmental conditions, and performance objectives. Our technical team provides comprehensive support throughout the selection and implementation process.
We assist with:
- Motor-to-drive compatibility verification
- Load profile analysis and drive sizing
- Application-specific configuration recommendations
- Installation planning and commissioning support
- Troubleshooting and technical consultation
