High Voltage VFD Systems
Optimize Motor Performance and Significantly Enhance Energy Efficiency with Our High Voltage VFD Systems
High Voltage Variable Frequency Drives (VFDs) represent a vital component in modern industrial operations, providing a crucial means to control motor speed and torque by varying the frequency and voltage supplied to the motor. These systems are essential for enhancing energy efficiency and reducing operational costs across various sectors, making them a key investment for industries aiming to optimize their energy consumption and improve process control.
Introduction to High Voltage VFD Systems
What are High Voltage Variable Frequency Drives?
High Voltage Variable Frequency Drives are sophisticated power electronic devices designed to control the speed and torque of AC electric motors operating at medium voltage levels, typically ranging from 2.3 kV to 13.8 kV. Unlike low voltage VFDs, these high voltage systems are built to handle vast power ranges, making them indispensable in heavy industries like mining, oil and gas, utilities, and metallurgy. The core function of an mv drive is to convert fixed-frequency and fixed-voltage utility power into variable frequency and voltage output, enabling dynamic and precise motor control.
Significance of Voltage in High Voltage VFD Operation
The voltage aspect is crucial in the operation of high voltage VFD systems, as it directly affects the performance and reliability of the drive system. By varying both frequency and voltage, these drives ensure that electric motors operate at optimal levels, thereby improving overall efficiency. This capability allows for seamless control of voltage and current, minimizing the risk of motor damage and enhancing longevity. High voltage VFDs are designed to meet the needs of medium voltage and high voltage applications, making them pivotal in industries with stringent performance requirements.
Key Components of High Voltage VFD Systems
A high voltage variable frequency drive (VFD) system comprises several integral components that work in concert to regulate motor speed and torque. The rectifier stage is responsible for converting the incoming alternating current (AC) power supply into direct current (DC) voltage. Following this conversion, the DC link filters and stabilizes the power before it reaches the inverter. The inverter then synthesizes a variable frequency and variable voltage AC waveform from the DC supply to precisely control the connected motor’s operation. Orchestrating this entire process is the control system, which monitors system parameters, executes complex algorithms, and provides the necessary logic to ensure efficient and reliable performance according to operational demands.
The Apex of Performance and Efficiency
Versatile Applications Across Industries
Benefits of Using High Voltage VFD Systems
Energy Efficiency and Cost Savings
High voltage variable frequency drive systems are known for their capability to enhance energy efficiency, resulting in significant cost savings for industrial applications. By enabling precise control over motor speed and torque, these voltage drives minimize energy consumption during low demand periods. This translates to reduced operational expenses and a smaller carbon footprint, making them a preferred option for environmentally aware enterprises.
Improved Motor Speed Control
The implementation of high voltage VFDS offers exceptional motor speed control, allowing industries to optimize operations for peak performance. This precise control is essential for applications such as conveyors and pumps, where variations in speed can greatly influence productivity and quality. Enhanced motor control through these systems facilitates smoother operation, lowers wear and tear, and boosts overall system reliability.
Extended Equipment Lifespan
One of the key benefits of high voltage VFD systems is their ability to extend the lifespan of industrial machinery. By incorporating soft start features and reducing mechanical stress on motors, these drives help avert premature equipment failure. This diminishment in mechanical and electrical stress not only extends the life of the equipment but also reduces maintenance needs, leading to lower long-term operational costs.
Discover Our VFD Drive Portfolio
Explore our High Voltage VFD Systems, each designed to meet specific performance, application, and budget requirements for your industrial needs.

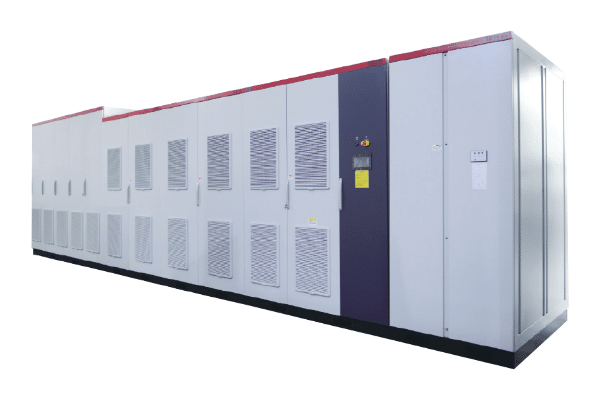

G71 Liquid Cooled High Voltage Inverter
The G71 variant is engineered for applications in harsh, dusty, or space-constrained environments. By utilizing an advanced liquid cooling system, it achieves superior thermal management and a higher IP43 protection rating, ensuring continuous, reliable operation where standard air cooling is impractical.
Key Parameters:

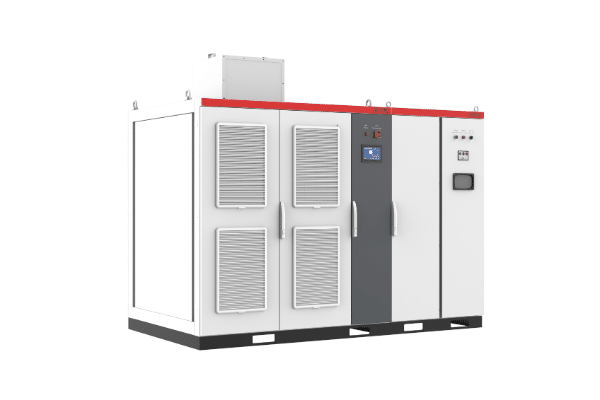

G71 High Voltage Inverter
A robust and highly efficient high-voltage inverter designed for a wide range of demanding industrial applications. It offers precise motor control with exceptional reliability, featuring a proven design with forced air cooling (IP31) that ensures dependable performance for high-power motors in controlled environments.
Key Parameters:
G74 High Voltage Inverter
Our premier high-voltage inverter, the G74 is designed for the most critical and complex industrial processes. It integrates high-precision control logic and advanced protection functions with multi-channel optical fiber communication, making it the ideal choice for mission-critical applications that demand superior accuracy and system safety.
Key Parameters:
Complete Range of Configurations
Our high voltage variable frequency drives are designed to offer robust performance across diverse industrial applications.
| Parameter | Specification |
|---|---|
| Input Voltage | 3.3kV ~ 11kV |
| Power Range | 185kW ~ 10000kW |
| System Efficiency | Up to 98% |
| Input Frequency | 50Hz/60Hz, with a fluctuation range of -10% to +10% |
| Control Mode | V/F Control, Sensorless Vector Control, Vector Control with Speed Sensor |
| Protection Class | IP30 |
| Cooling Method | Forced Air Cooling / Liquid Cooling |
Expert VFD Selection and Support
Selecting the optimal VFD requires careful consideration of your motor specifications, application requirements, environmental conditions, and performance objectives. Our technical team provides comprehensive support throughout the selection and implementation process.
We assist with:
- Motor-to-drive compatibility verification
- Load profile analysis and drive sizing
- Application-specific configuration recommendations
- Installation planning and commissioning support
- Troubleshooting and technical consultation
Frequently Asked Questions (FAQs)
A High Voltage VFD (or Medium Voltage Drive) is a type of motor controller that drives electric motors with higher voltage inputs, typically from 2.3 kV up to 13.8 kV. It differs from a Low Voltage VFD primarily in its operating voltage classes and power range, requiring advanced multi-level inverter topologyies and phase-shifting transformers to manage high voltage and current levels safely and efficiently.
High Voltage VFDs are extensively used in heavy industrial sectors such as power generation, oil and gas, mining, metallurgy, cement, building materials, and municipal water and wastewater treatment. They are essential for controlling large motors in applications like pumps, fans, blowers, compressors, conveyors, and crushers.
Yes, a High Voltage VFD can replace both soft starters and direct-on-line (DOL) starters, offering far superior motor control capabilities. While soft starters reduce inrush current during startup, a vfd provides complete speed control across the entire operating range, enabling both soft starting and continuous energy optimization. For high-performance and energy savings, vfds are the preferred choice.
The primary benefits include substantial energy savings (especially in variable torque applications like fans and pumps), precise motor speed and torque control for process optimization, reduced mechanical stress on motors and driven equipment, lower maintenance costs, and improved power factor with low harmonic distortion on the utility grid.
Our High Voltage VFD systems typically use multi-level inverter topologyies combined with phase-shifting input transformers. This design approach significantly reduces both input current harmonic distortion (THDi) and output voltage harmonic distortion (THDv), ensuring compliance with IEEE 519 standards and protecting both the motor and the upstream electrical system.
Maintenance for High Voltage VFDs typically involves regular inspections of cooling systems (fans or water loops), checking electrical connections, monitoring component health, and verifying parameter settings. Our mv drives are designed for ease of maintenance and troubleshooting through modularity and diagnostic features, helping to maximize uptime.
