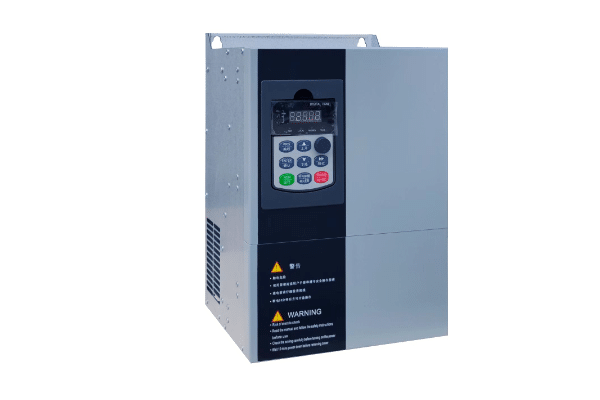

Printing Press VFD
Perfect Prints, Every Time: Precision Control with Printing Press VFDs
Master Your Press with Unmatched Precision and Speed
In the competitive printing industry, quality and speed are everything. Misregistration, inconsistent web tension, and inefficient speed changes lead to wasted material, lost time, and diminished print quality. Traditional mechanical or older drive systems simply can’t provide the level of accuracy required for modern printing demands.
Our Printing Press Variable Frequency Drives (VFDs) provide the ultimate solution. Engineered specifically for web press drives, our VFDs offer dynamic, real-time control over every motor in your press. This ensures perfect synchronization, stable web tension, and precise registration control, resulting in sharper prints, faster job setups, and significant energy savings.
Why does a printing press need Variable Frequency Drives?
In modern printing operations, several persistent industry challenges can hinder efficiency, quality, and operational continuity. Addressing these obstacles with effective, technology-driven solutions is vital for maintaining competitiveness and ensuring dependable, high-quality output in demanding environments.
Operators often struggle to maintain precise web tension and roller synchronization with basic motor controls. Abrupt starts, stops, and speed fluctuations can cause material stretching, color misregistration, and inconsistent print quality, leading to significant waste.
Solution:
Implementing advanced VFDs with precise speed and torque control allows for refined web handling. This ensures consistent tension and perfect synchronization between print stations, enabling flawless registration and superior print quality from the start to the end of a run.
Frequent cycling and abrupt operation subject the press’s complex system of gears, rollers, and bearings to considerable mechanical stress. This shock loading accelerates wear, increases the frequency of maintenance interventions, and drives up the cost of replacement parts.
Solution:
VFD-driven systems provide smooth, controlled acceleration and deceleration curves, which minimize shock loads transmitted to the drivetrain. This extends the lifespan of critical mechanical components and decreases overall maintenance requirements.
As printing requirements evolve, legacy systems often lack the adaptability to handle different substrates, run lengths, or print speeds efficiently. This limits a printer’s ability to take on new, more profitable types of work and reduces their overall competitiveness.
Solution:
VFD-based controls support flexible, recipe-based configurations that allow for easy parameter adjustments for different jobs. This scalability future-proofs the press and allows for efficient adaptation to new production demands or material types.
Traditional presses often operate motors at or near full speed, even during setup, makeready, or standby periods. This leads to inefficient power usage and elevated energy costs, particularly in facilities that run multiple presses or shifts.
Solution:
Variable frequency drives optimize motor speed and torque in real time, allowing for low-speed “jog” functions during setup and reducing power during standby. This targeted control significantly reduces energy consumption and lowers operational expenses.
Traditional setups offer minimal visibility into the health of the drive system, hampering preventative maintenance and prolonging unplanned downtime during faults. Identifying the root cause of an issue can be a time-consuming and difficult process.
Solution:
State-of-the-art VFDs provide comprehensive real-time diagnostics, remote monitoring, and detailed fault history logs. These tools empower maintenance teams to anticipate issues proactively, reduce unplanned outages, and improve overall system reliability.
Basic motor controls may not provide adequate safeguards against overloads, unexpected jams, or material tears. These events can pose a risk to both personnel and the sensitive, expensive equipment within the printing press, leading to costly damage and downtime.
Solution:
Modern VFDs integrate comprehensive safety functionalities, including overload protection, fast torque-off, and programmable logic for customized safety protocols. These features greatly enhance workplace safety and can quickly stop the press to minimize damage during a jam.
Trusted for Printing Press VFDS
Our Variable Frequency Drives are engineered for the high-precision demands of printing press applications, delivering superior motor control, operational reliability, and exceptional print quality.
YC-1610 Printing Press VFD
A compact, high-performance vector drive offering flexible customization and precise, energy-saving control for various printing press operations.
Technical features
YC-1800 Printing Press VFD
This universal VFD features a modern, compact design and superior heat dissipation, making it an adaptable solution for numerous systems.
Technical features
YC-5000 Printing Press VFD
A heavy-duty vector drive providing high-torque output at low speeds, ensuring robust and precise control for demanding industrial tasks.
Technical features
Key Features of Our Printing Press VFDs
In printing presses, the importance of VFDs cannot be overstated. By enabling motor speed control, VFDs ensure accurate registration and tension management, which are vital for high-quality printing and minimizing material waste.
Precise Speed Control & Synchronization
Our VFDs excel at providing flawless synchronization between all sections of the printing press. Using an advanced master-follower configuration, the drives create a “virtual” electronic line shaft, ensuring every print cylinder, infeed, and outfeed roller rotates in perfect harmony. This eliminates the mechanical complexity of traditional line shafts and guarantees precise color-to-color registration, resulting in crisp, high-quality images and drastically reduced setup waste.
Advanced Web Tension Control
Maintaining consistent web tension control is critical for print quality. Our VFDs offer dedicated torque control modes that work seamlessly with dancer arms or load cells to automatically regulate the tension of the substrate as it travels from the unwinder to the rewinder. This prevents material stretching, wrinkling, and web breaks, ensuring a stable and reliable process even when running delicate films or papers at high speeds.
Coordinated Multi-Motor Drive Architecture
A modern printing press relies on a complex multi-motor system, and our VFDs are designed for seamless integration. They can be configured in a common DC bus architecture, allowing for energy sharing between drives and improving overall system efficiency. This coordinated control simplifies the automation system, provides unified diagnostics, and ensures all motors work together cohesively for optimal press performance.
Dynamic Speed and Torque Response
Our VFDs provide the dynamic performance necessary for modern printing. They offer precise low-speed “jog” control for plate setup and cleaning, as well as rapid and smooth acceleration to high-speed production runs. Furthermore, their high starting torque capability ensures they can easily overcome the high inertia of large print cylinders and rollers, reducing mechanical stress and improving the longevity of the drivetrain.
Why Choose Our Printing Press VFDs?
Industry-Leading Expertise
Decades of experience serving the printing industry with tailored VFD solutions.
Robust Technical Support
Our engineers provide start-up assistance, ongoing maintenance advice, and in-depth troubleshooting to keep your operation running at peak performance.
Proven Results
Our drives are running in major print facilities worldwide, delivering reliable performance, energy savings, and measurable ROI.
Continuous Innovation
We invest in R&D, guaranteeing you access to the latest advances in drive technology, connectivity, and machine diagnostics.
Typical Technical Specifications
Explore the comprehensive specifications for Printing Press VFD systems
| Parameter | Specification / Requirement |
|---|---|
| Control Mode | Flux Vector Control (FVC) with Encoder Feedback |
| Synchronization | Built-in Electronic Gearing, Master-Follower, Line Shafting |
| Torque Control Accuracy | Typically ≤ ±2% |
| Speed Regulation | Typically ≤ ±0.01% |
| Overload Capacity | 150% for 60 seconds (Heavy Duty) |
| Primary Communication | EtherNet/IP, Profinet, EtherCAT |
| Encoder Interface | Standard (e.g., Quadrature, SSI, EnDat) |
| Application Duty Rating | Constant Torque (CT) or Heavy Duty (HD) |
| DC Bus Configuration | Common DC Bus Capable |
| Dynamic Braking | Built-in Transistor |
| Safety Feature | Safe Torque Off (STO) - SIL 2/3, PLe |
| Diagnostics | Real-time monitoring, detailed fault logging, network diagnostics |
Expert VFD Selection and Support
Selecting the optimal VFD requires careful consideration of your motor specifications, application requirements, environmental conditions, and performance objectives. Our technical team provides comprehensive support throughout the selection and implementation process.
We assist with:
- Motor-to-drive compatibility verification
- Load profile analysis and drive sizing
- Application-specific configuration recommendations
- Installation planning and commissioning support
- Troubleshooting and technical consultation
Frequently Asked Questions (FAQs)
Print quality depends on perfect synchronization between print cylinders and rollers. VFDs achieve this through “electronic line shafting,” where each motor’s speed is precisely controlled and synchronized with a master speed reference. This eliminates the speed fluctuations that cause color misregistration, ensuring every layer is printed with flawless alignment and consistency.
VFDs provide a “soft start” by smoothly and gradually ramping up the press’s speed. This eliminates the sudden mechanical shock and “jerk” from a direct-on-line start, which is a major cause of wear on gears, bearings, and rollers. This gentle acceleration and deceleration significantly extend the lifespan of the press’s critical drivetrain components.
Modern VFDs communicate seamlessly with PLCs over industrial networks like EtherNet/IP, Profinet, or Modbus TCP/IP. The VFD acts as a smart device on the network, receiving speed and torque commands from the PLC and sending back important diagnostic data like current, speed, and fault status, allowing for centralized control and monitoring.
Web tension is the amount of pull on the material (the “web”) as it travels through the press. A VFD with advanced torque control can precisely manage the motors on the unwinder, infeed sections, and rewinder to maintain a constant, specified tension. This prevents the material from stretching or sagging, which is critical for maintaining registration and preventing web breaks.
Yes, though the savings come from multiple areas. While a press often runs at a constant production speed, VFDs save significant energy during setup and makeready by allowing motors to run at a slow “jog” speed. Furthermore, by reducing wasted material from poor registration and web breaks, VFDs lead to substantial cost savings and improved overall efficiency.
Yes, retrofitting an older press with a VFD-based multi-motor system is a very common and effective upgrade. It involves removing the old mechanical line shaft and installing individual motors and VFDs on each key section of the press. This can dramatically improve the print quality, increase the production speed, and extend the life of a valuable machine.
