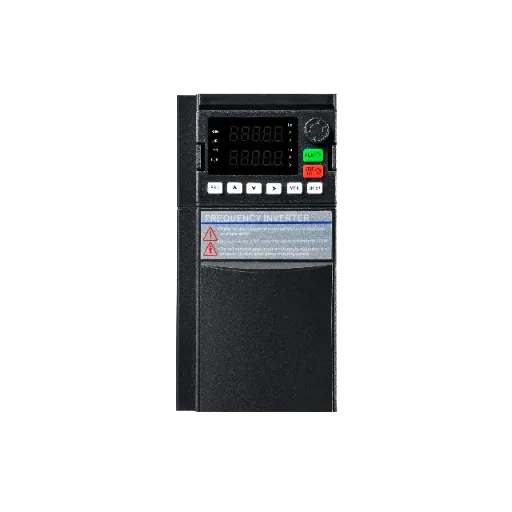

Fractional HP VFD
Optimize Motor Control and Reduce Energy Costs
Benefits of Using Fractional HP VFD
Experience a range of advantages by integrating Fractional HP VFDs into your automation infrastructure. Designed for precision and operational efficiency, these drives deliver significant value in demanding industrial environments.
By precisely controlling motor speed and torque, Fractional HP VFDs minimize energy consumption, leading to measurable reductions in operating costs and supporting organizational sustainability initiatives.
Advanced modulation algorithms enable superior control over process parameters, ensuring consistent product quality and reliable system performance, even under fluctuating load conditions.
The soft-start and soft-stop features reduce mechanical stress on motors and connected equipment, significantly increasing service life and decreasing the frequency of maintenance interventions or unplanned downtime.
With comprehensive communication protocols and modular design, these drives can be seamlessly incorporated into existing systems, allowing easy expansion as operational requirements evolve.
Trusted for Industrial AC VFDS
Explore our comprehensive AC Variable Frequency Drive (VFD) product lines. Find the perfect drive for your industrial, commercial, or residential application.

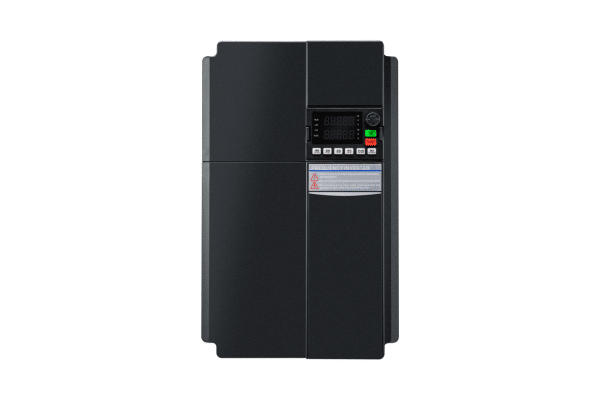

YC-1610 Low Voltage VFD
A compact and efficient low-voltage VFD designed for small-scale applications, offering precise motor control and energy savings in a user-friendly package.
Technical features

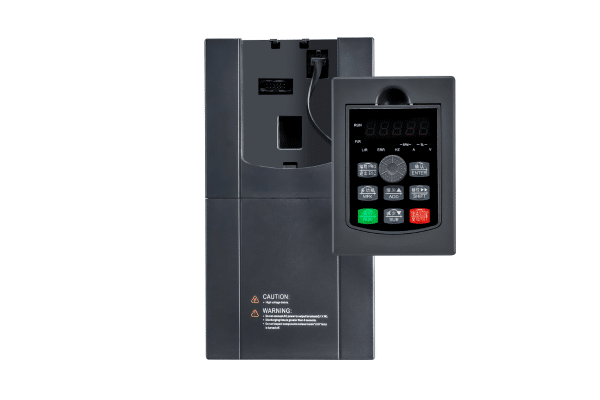

YC-1800 Low Voltage VFD
A versatile and reliable low-voltage VFD, ideal for light-duty industrial and commercial applications, ensuring consistent performance and advanced control.
Technical features

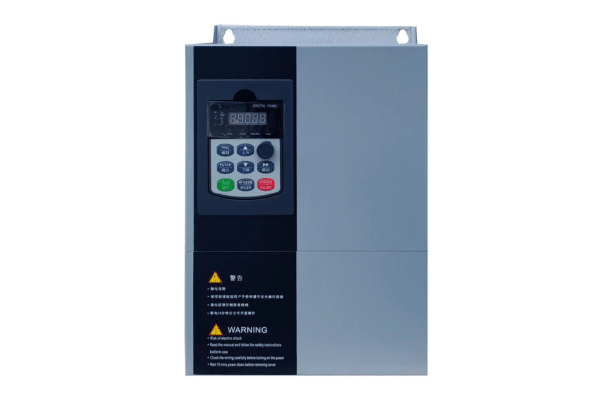

YC-5000 Low Voltage VFD
A high-performance low-voltage VFD built for medium-duty applications, offering advanced motor control and excellent adaptability for various tasks.
Technical features
Key Application Scenarios for Fractional HP VFD
HVAC Systems in Commercial Buildings
In HVAC applications, Fractional HP VFDs offer precise fan and pump speed management, resulting in optimal temperature regulation and significant energy savings. By adjusting motor output to match real-time demand, they reduce both electricity consumption and wear on equipment. This not only minimizes operational costs but also extends the lifecycle of vital HVAC assets, contributing to sustainable facility management.

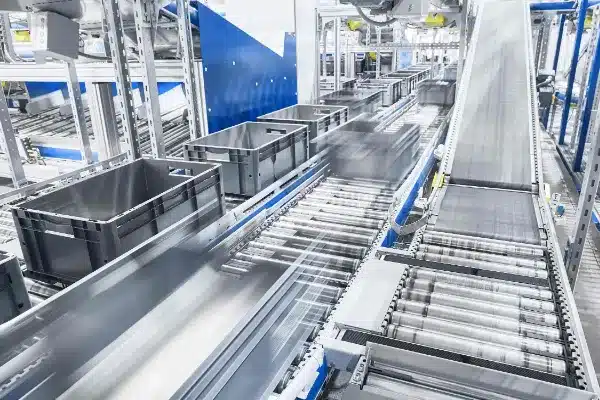

Automated Conveyor Solutions in Manufacturing
Modern manufacturing relies on seamless material flow. Fractional HP VFDs provide fine-tuned control over conveyor motor speeds, enabling swift line changes and minimizing product handling issues. Their ability to quickly adapt to fluctuations in load or production schedules ensures consistent throughput, enhanced safety, and reduced mechanical stress, supporting agile production environments and quality assurance.

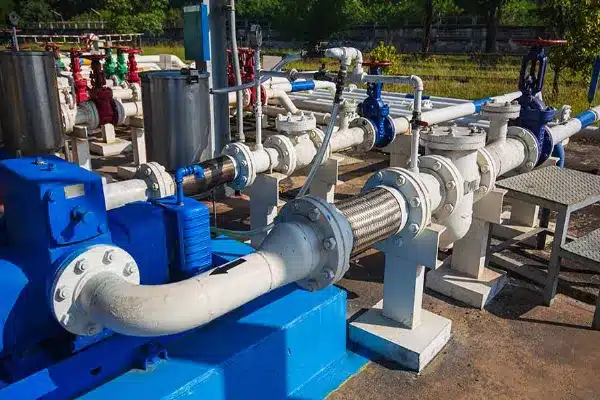

Pumping Applications in Water Treatment
Water and wastewater treatment facilities utilize Fractional HP VFDs to regulate fluid movement efficiently in low-horsepower pumping stations. Their advanced control ensures precise pressure and flow rates, safeguarding infrastructure by preventing pump overrun, cavitation, or shock loads. This results in improved process stability, lower maintenance costs, and compliance with environmental standards for municipal and private water systems.

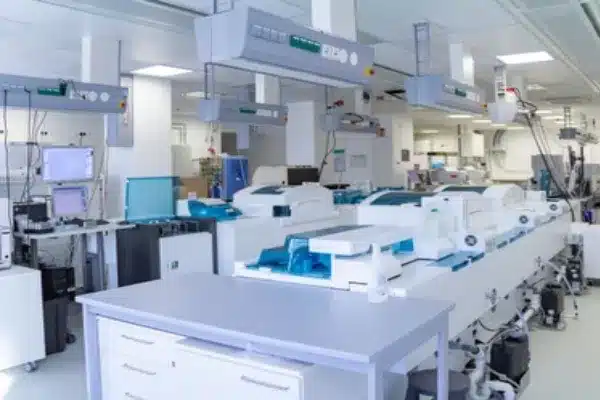

Specialized Equipment in Laboratory and Healthcare Settings
Laboratory and healthcare environments demand high-precision equipment operation. Fractional HP VFDs excel in serving centrifuges, fume hoods, and small diagnostic devices by offering stable, repeatable motor speed control. Their reliable performance directly enhances experimental accuracy and patient safety, while their compact form factors and low noise emissions support sensitive, space-constrained applications.
Features of Fractional HP VFD
Advanced Motor Control Technology
Fractional HP VFDs leverage state-of-the-art control algorithms to deliver precise speed, torque, and direction management for small motors. This allows for highly accurate process control in demanding industrial and laboratory applications.
Compact and Efficient Design
Engineered with a streamlined footprint, these VFDs maximize space utilization within equipment enclosures or tight installation sites. Their high energy efficiency minimizes heat output and contributes to overall operational cost reductions.
User-Friendly Interface and Connectivity
Featuring intuitive controls and a wide range of communication options, fractional HP VFDs ensure seamless integration into modern automation systems. Operators benefit from simplified setup, real-time monitoring, and remote diagnostics for enhanced system reliability.
Factors to Consider When Selecting Fractional HP VFD
01.
Load Compatibility
Ensure the VFD is designed to handle the specific load type, whether constant or variable torque applications.
02.
Input Voltage Range
Verify the unit supports the facility’s input voltage to guarantee safe and reliable operation without risking device failure.
03.
Control Features
Assess available control options, such as PID or network communication, to match the application’s automation requirements.
04.
Thermal Management
Consider the VFD’s cooling methods and heat dissipation characteristics to maintain performance in demanding operational environments.
05.
Compliance and Certifications
Review relevant industry certifications and safety standards to confirm regulatory compliance and optimal device reliability.
General Technical Specifications
This section provides a comprehensive overview of the detailed technical specifications and core parameters of Fractional HP Variable Frequency Drives (VFDs). The following table is designed to support informed selection and integration into various industrial and commercial applications.
| Specification | Parameter |
|---|---|
| Input Voltage Range | 110–240V AC |
| Output Power Range | 0.1 – 1 HP (fractional horsepower) |
| Output Frequency | 0–400 Hz |
| Control Method | V/F, Sensorless Vector Control |
| Overload Capacity | 150% for 60 seconds |
| Operating Temperature Range | -10°C to +50°C |
| Communication Protocols | Modbus RTU, CAN, optional Ethernet |
| Input Phase | Single-phase/Three-phase options |
| Protection Functions | Overvoltage, Undervoltage, Overcurrent, Short-Circuit |
| Cooling Method | Forced air cooling |
| Certifications | CE, UL, RoHS compliant |
Expert VFD Selection and Support
Selecting the optimal VFD requires careful consideration of your motor specifications, application requirements, environmental conditions, and performance objectives. Our technical team provides comprehensive support throughout the selection and implementation process.
We assist with:
- Motor-to-drive compatibility verification
- Load profile analysis and drive sizing
- Application-specific configuration recommendations
- Installation planning and commissioning support
- Troubleshooting and technical consultation
Frequently Asked Questions (FAQs)
A Fractional HP VFD (Variable Frequency Drive) is specifically designed to control the speed and torque of low horsepower motors, typically used in small machinery and precise automation applications.
By precisely controlling motor speed according to load requirements, Fractional HP VFDs reduce unnecessary energy consumption and lower operating costs across diverse applications.
Standard protection features may include overvoltage, undervoltage, overcurrent, short-circuit, and thermal overload protection, ensuring reliable and safe operation.
These VFDs are compatible with a range of fractional horsepower motors, including induction, synchronous, and permanent magnet motors, depending on the specific device specifications.
Common applications include HVAC fan and pump systems, conveyors, small-scale process machinery, laboratory equipment, and compact automation systems.
Yes. Most modern Fractional HP VFDs support industry-standard communication protocols such as Modbus RTU, CAN, and optional Ethernet, allowing seamless integration into industrial automation systems.
