Ready to Get Your VFD Solution?
Whether you need a single drive or a complete system, we have the VFD products and engineering support to ensure your project's success.
125-300 HP High Power VFD
Maximize Motor Efficiency with 125-300 HP High Power VFDs
Key Benefits of 125-300 HP High Power VFDs
Utilizing Variable Frequency Drives (VFDs) in the 125-300 HP range delivers substantial operational and financial advantages. These systems are engineered to provide precise control over high-power motors, leading to significant improvements across several key performance indicators.
By accurately matching motor speed to the specific load demands of an application, these VFDs drastically reduce energy consumption, translating directly into lower operational expenditures.
Beyond immediate energy savings, VFDs reduce maintenance requirements and equipment wear, leading to a lower total cost of ownership over the system’s lifecycle.
VFDs offer precise speed and torque control, enabling soft starts and stops that minimize mechanical stress and extend the operational lifespan of connected equipment.
Advanced diagnostics and protective features are integrated into these drives, safeguarding motors from electrical faults and ensuring consistent, dependable performance in demanding industrial environments.
Trusted for Industrial AC VFDS
Explore our comprehensive AC Variable Frequency Drive (VFD) product lines. Find the perfect drive for your industrial, commercial, or residential application.
G71 Series High Voltage VFD
A robust and scalable high-voltage VFD series, engineered for high-power industrial applications. It ensures reliable performance, energy efficiency, and operational flexibility.
Technical features
G74 Series High Voltage VFD
A cutting-edge high-voltage VFD series built for ultra-high-power applications. It offers precision control, exceptional durability, and advanced diagnostics for extreme industrial tasks.
Technical features
G71 Water-cooled High Voltage VFD
An industrial-grade water-cooled high-voltage VFD designed for heavy-duty applications. It delivers unmatched power, superior cooling, and efficiency in demanding environments.
Technical features
Key Application Scenarios for 125-300 HP High Power VFDs
Industrial Manufacturing and Processing
In manufacturing environments, these high-power VFDs are essential for managing large-scale machinery such as extruders, mixers, conveyors, and industrial fans. By enabling precise speed adjustments, VFDs allow operators to fine-tune production processes, improve product quality, and reduce material waste. The soft-start capability significantly lessens mechanical shock on equipment during startup, extending the lifespan of critical components like gearboxes, belts, and couplings. This level of control is paramount in continuous production facilities where downtime results in significant financial losses, and process optimization directly correlates with profitability.

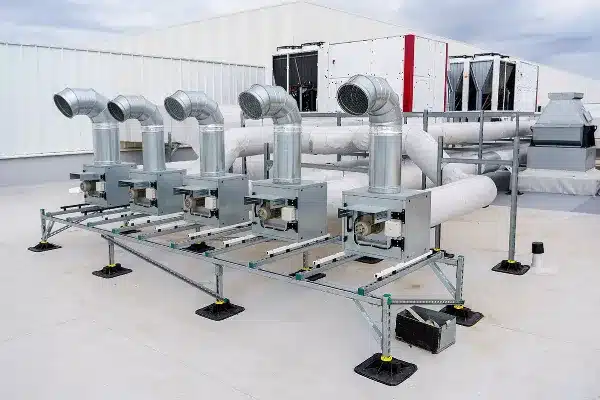

Commercial and Industrial HVAC Systems
Large-scale Heating, Ventilation, and Air Conditioning (HVAC) systems in commercial buildings, data centers, and industrial facilities rely on powerful fans, pumps, and compressors. VFDs in the 125-300 HP range are applied to these components to precisely match output with real-time heating and cooling demands. This dynamic control prevents the wasteful practice of running motors at full speed and using dampers or bypass valves to regulate flow. The resulting energy savings are substantial, and the reduced mechanical and electrical stress on the HVAC equipment leads to lower maintenance costs and greater system reliability.

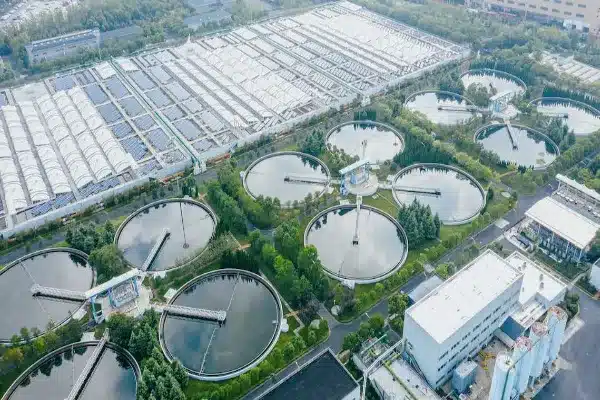

Water and Wastewater Management
Municipal and industrial water treatment plants utilize large pumps for moving significant volumes of water through various filtration, purification, and distribution stages. High-power VFDs provide critical control over these pumping systems, allowing for precise pressure and flow regulation that adapts to fluctuating demand. This capability minimizes energy consumption, prevents water hammer effects by enabling smooth acceleration and deceleration, and reduces mechanical wear on pipes and valves. In wastewater applications, VFDs optimize the performance of aeration blowers and mixers, which are energy-intensive processes vital for effective biological treatment.

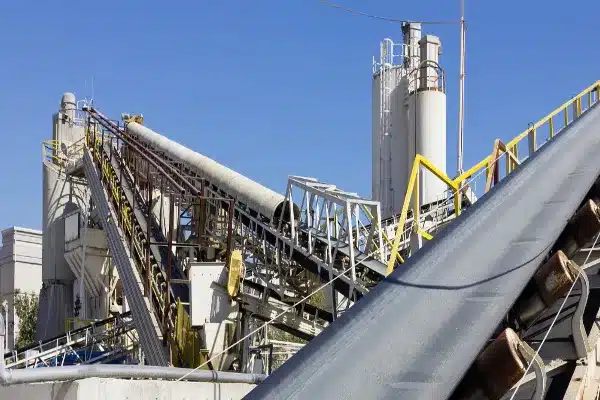

Mining and Material Handling Operations
The mining industry presents one of the most demanding environments for electrical equipment, with applications including large conveyors, crushers, grinders, and ventilation systems. VFDs rated for 125-300 HP are engineered to withstand these harsh conditions while providing the robust torque and speed control necessary for heavy-duty material handling. They allow for controlled starting of fully loaded conveyors, preventing belt slippage and mechanical damage. Furthermore, VFDs optimize the speed of grinding mills and crushers based on load variations, maximizing throughput and energy efficiency while protecting motors from damaging overloads.
Installation and Input Requirements for 125-300 HP High Power VFDs
Installation Guidelines
Proper installation of 125-300 HP high power VFDs requires secure mounting on a vibration-free surface and adherence to the manufacturer’s specified clearance for ventilation. All electrical connections must be carried out by qualified personnel, following applicable codes and standards to ensure operational reliability and personnel safety.
Input Power Requirements
These VFDs require a stable three-phase power supply with adequate voltage ratings (commonly 380V, 480V, or 690V depending on region and model specification). Circuit protection devices such as fuses or circuit breakers must be selected based on the drive’s rated current, and incoming power quality—such as total harmonic distortion—should be verified to prevent operational issues.
Environmental Considerations
High power VFDs should be installed in environments free from excessive dust, corrosive substances, and moisture, with ambient temperatures typically ranging between -10°C and 40°C. For applications subject to higher humidity or airborne contaminants, consideration of enclosures rated NEMA 12 or higher is recommended to ensure long-term durability and consistent performance.
Technical Foundation: How High Power VFDs Optimize Motor Performance
01.
Advanced Speed Control
High power VFDs enable precise adjustment of motor speed to match process requirements, significantly improving operational efficiency and reducing mechanical stress on equipment. This adaptability allows industrial systems to operate closer to their optimal performance parameters.
02.
Energy Efficiency Enhancement
By modulating motor output based on actual load demands, high power VFDs help minimize unnecessary energy use. This targeted approach not only results in lower power consumption, but also contributes to a reduction in operating costs and environmental impact over time.
03.
Torque Regulation and Protection
Sophisticated control algorithms in high power VFDs provide real-time torque management and enhanced motor protection. Features such as overload protection, soft starting, and automatic fault diagnostics mitigate the risk of equipment failure and prolong system lifespan.
04.
Integration and Monitoring Capabilities
Modern high power VFDs support seamless integration with advanced automation systems and offer comprehensive monitoring options for critical parameters. Continuous feedback and diagnostics empower operators to optimize maintenance schedules and quickly address any emerging performance issues.
General Technical Specifications
Explore the technical specifications of variable frequency drives (VFDs) designed for high power applications ranging from 125 to 300 HP.
| Specification | Description |
|---|---|
| Power Range | 125 HP to 300 HP |
| Voltage Options | 220V, 380V, 415V, 460V, 480V |
| Phase Type | 3 Phase and Single Phase |
| Control Type | Vector Control, Sine Wave, Frequency Control |
| Rated Current | Varies by model (e.g., 150A, 200A) |
| Input Voltage | AC supply voltage (e.g., 220V, 460V) |
| Temperature Range | –10℃ to +50℃ |
| Applications | Pumps, Compressors, Elevators, Textile Machines |
| Features | Energy Savings, EMC Filter, Noise Reduction, High Performance |
| Optional Accessories | AC Reactor, Built-in Over-current Protection, VFD Control |
| Efficiency | Dynamic torque control, power factor regulation |
| Installation | Compact design for easy installation; 1-phase to 3-phase conversion available |
| Durability | Heavy duty construction for reliability and long service life |
| Energy Consumption | Directly proportional to motor speed and load |
Expert VFD Selection and Support
Selecting the optimal VFD requires careful consideration of your motor specifications, application requirements, environmental conditions, and performance objectives. Our technical team provides comprehensive support throughout the selection and implementation process.
We assist with:
- Motor-to-drive compatibility verification
- Load profile analysis and drive sizing
- Application-specific configuration recommendations
- Installation planning and commissioning support
- Troubleshooting and technical consultation
Frequently Asked Questions (FAQs)
High power VFDs deliver enhanced energy efficiency, precise motor control, reduced mechanical stress, and significant maintenance cost savings for heavy-duty operations.
Routine inspections every three to six months are advised, including checks of electrical connections, cooling systems, and firmware updates to ensure optimal performance.
High power VFDs offer overload, short-circuit, phase loss, and over-temperature protection, as well as real-time diagnostics to prevent motor and system failures.
By adjusting motor speed and torque to match load requirements, VFDs minimize unnecessary energy expenditure, leading to substantial reductions in overall power consumption.
Yes, most modern high power VFDs feature advanced communication protocols such as Modbus, Profibus, or Ethernet/IP, allowing seamless integration with automation platforms.
High power VFDs are designed with robust enclosures and advanced thermal management, ensuring reliable operation in environments with dust, moisture, and variable temperatures.
