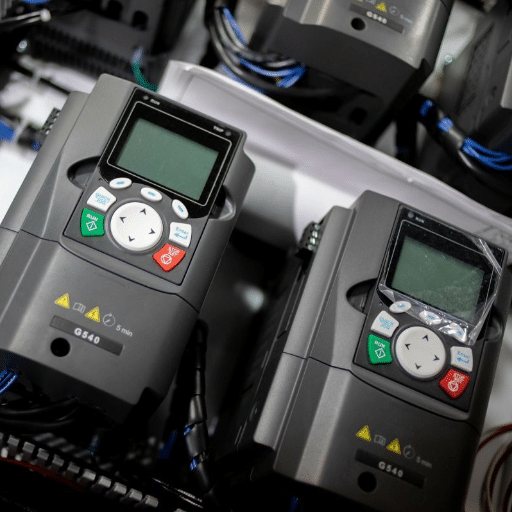

VFD Commissioning Steps: A Field Engineer’s Startup Checklist

The correct VFD commissioning steps are: verify safety and installation, check supply and motor insulation, power up and enter motor data, run auto-tune, perform a no-load rotation test, load test the system, then document and hand over. Skip any of these steps and you risk trips, motor damage, or a startup that delays production by days.

A VFD that was sized and installed correctly can still fail on day one if commissioning is rushed. The drive does not know your motor until you tell it. The load does not forgive aggressive ramps. A single reversed phase or a missed autotune can turn a straightforward startup into an expensive troubleshooting session.

This guide gives you a repeatable VFD commissioning procedure from lockout/tagout to final sign-off. You will get pre-commissioning checks, an eight-step VFD startup procedure, application-specific tuning tips, and a printable-style VFD commissioning checklist. If you are still selecting or sizing the drive, start with our guides on how to choose a VFD and how to size a VFD for your motor.

Key Takeaways

• Commissioning validates everything upstream. Sizing, installation, and wiring are only proven once the drive runs under load.
• Safety comes first. LOTO, zero-energy verification, and insulation testing prevent injury and equipment damage.
• Motor data entry is the most common failure point. Enter nameplate values exactly; wrong voltage or current settings cause ~60% of post-installation faults.
• Auto-tune is essential for vector control. Skipping it leads to unstable torque, hunting, and overcurrent trips.
• No-load testing protects the load and the drive. Verify rotation, direction, and smooth ramps before coupling the mechanical system.

Why VFD Commissioning Matters

Commissioning is the moment of truth. Every calculation made during sizing, every cable pulled during installation, and every parameter planned during configuration is tested when the start button is pressed.

The real cost of rushed commissioning shows up fast. A food processing plant in Brazil installed a 75 HP VFD on a dough mixer and powered it straight into production. The motor ran backward for thirty seconds before the mechanical overload tripped. The coupling suffered damage, and the batch was lost.

A simple no-load test would have caught the reversed rotation in seconds. Skipping basic VFD testing and commissioning steps turned a routine startup into rework and downtime. Commissioning is not the place to save time.

The goal of VFD commissioning is not just to make the motor spin. It is to prove that the drive, motor, and load work together safely and reliably under real operating conditions. Done well, commissioning also creates the baseline data that maintenance teams use for years.

Pre-Commissioning Checks (Before Power-On)

Never energize a VFD until the installation has been inspected and verified. Most commissioning failures trace back to something missed before the start button was pressed. The checks below are the foundation of any safe VFD startup procedure.

Safety: LOTO and Zero-Energy State

Apply lockout/tagout procedures to the upstream disconnect. Verify that the VFD, motor, and control circuits are de-energized. Confirm the DC bus has discharged below 50 VDC before touching terminals. For drives without a visible display, use a properly rated multimeter.

Follow site electrical safety rules and NFPA 70E guidelines for arc-flash protection. Only qualified personnel should perform these checks.

Mechanical and Environmental Verification

Confirm that the VFD enclosure rating matches the environment. Check for adequate clearance around the drive for airflow and maintenance access. Inspect cooling fans, filters, and ventilation openings. Verify that ambient temperature and humidity are within the manufacturer’s limits.

Wiring, Grounding, and EMC Inspection

Check that line and load conductors are landed on the correct terminals. Input power goes to the rectifier side; motor cables connect to the inverter output. Tighten all terminations to the manufacturer’s torque values.

Verify grounding and bonding of the VFD chassis, motor frame, cable shields, and any line/load reactors. Keep power and control cables separated. Shielded motor cable should have the shield terminated according to the drive manual, usually at both ends for high-frequency grounding.

Motor Insulation Resistance Testing

Disconnect the motor leads from the VFD before megger testing. Apply the correct test voltage for the motor rating: 500 VDC for motors below 600 V, 1000 VDC for 600 V to 5 kV, and higher for medium-voltage machines. Minimum acceptable insulation resistance is typically 1 MΩ, though new or rewound motors often read 100 MΩ or more.

Never megger the VFD itself unless the manufacturer explicitly permits it. The high-voltage test can damage input rectifiers and output IGBTs.

Input Supply Verification

Measure line-to-line voltage at the VFD input terminals. Confirm it is within the drive’s rated range, usually ±10% of nominal. Calculate voltage imbalance. An imbalance above 2-3% can cause DC bus ripple, input phase-loss faults, and premature capacitor failure.

Step-by-Step VFD Commissioning Procedure

Once pre-commissioning checks are complete, follow this eight-step sequence. Treat it as a checklist, not a suggestion.

Step 1: First Power-Up and Status Check

Close the disconnect and allow the VFD to complete its DC bus charging sequence. The DC bus voltage at full charge will be approximately 1.35 times the input line-to-line voltage, or about 650 VDC on a 480 VAC supply. Most drives display a pre-charge status or emit an audible contactor click when ready. Do not issue a run command during charging.

Check the display for faults such as input phase loss, undervoltage, or pre-charge failure. Confirm the cooling fan operates. If the drive reports a fault, resolve it before proceeding. Common first-power issues include reversed input phases, low supply voltage, or a missing external brake resistor that the drive expects.

Step 2: Enter Motor Nameplate Data

This is the most important configuration step. Enter the motor values exactly as shown on the nameplate: rated voltage, full-load current, frequency, rated speed, power in kW or HP, and pole count if required.

For dual-voltage motors, enter the current that corresponds to the actual wired voltage. A 230/460 V motor wired for 460 V needs the 460 V full-load amps entered. A mismatch here will cause current limiting, overload faults, or poor torque.

If you need a deeper walkthrough of parameter configuration, see our VFD parameter settings guide.

Step 3: Select Control Mode and Command Source

Choose the control mode that matches the application. V/Hz control is simple and reliable for fans and pumps. Sensorless vector control gives better torque response for conveyors and compressors. Closed-loop vector control requires encoder feedback and is used for high-performance positioning or hoist applications.

Set the command source and speed reference. The drive might receive start/stop from terminals, a keypad, a PLC, or a fieldbus network. The speed reference may come from a 0-10 V analog input, a 4-20 mA loop, a potentiometer, or a digital network.

Step 4: Configure Limits, Ramps, and Protection

Set minimum and maximum output frequency limits. A pump, for example, should never be driven below the minimum speed that maintains flow or cooling. Set acceleration and deceleration ramp times based on load inertia. Starting values for common applications are:

Application	Acceleration	Deceleration
Pump	1-3 s	1-3 s
Fan	10-30 s	10-30 s
Conveyor	3-5 s	3-5 s
Compressor	5-10 s	5-10 s
Hoist/Crane	2-5 s	2-5 s

Configure current limits, overload class, thermal motor protection, overvoltage/undervoltage thresholds, stall prevention, and safe torque off inputs if fitted. Set the stop mode to ramp, coast, or DC injection braking as the application requires.

Step 5: Run Motor Identification / Auto-Tune

The auto-tune routine measures motor electrical characteristics such as stator resistance, inductance, and rotor time constant. Use rotational auto-tune whenever the motor can be uncoupled from the load for the most accurate model. Use stationary auto-tune if decoupling is impractical.

A water treatment plant in Thailand installed a sensorless-vector drive on a high-pressure pump but skipped rotational auto-tune. The drive hunted speed at low flow, causing pressure surges and pipe vibration. After decoupling the pump and rerunning auto-tune, the drive held speed steady and the pressure loop stabilized.

Step 6: No-Load Rotation Test

Uncouple the motor from the load if possible. Set a low speed reference, such as 5 Hz, and command a start from the local keypad. Verify the motor rotates in the correct direction. If not, stop the drive and swap any two motor leads at the VFD output terminals.

Listen for abnormal noise or vibration. Check that no-load current is roughly 25-40% of full-load amps. Gradually ramp through 10 Hz, 30 Hz, and base frequency.

Note any resonance points where mechanical vibration increases. Test stopping behavior and verify that deceleration does not trip the DC bus overvoltage fault.

Step 7: Load Testing and Performance Tuning

Reconnect the motor to the mechanical load. Start at low speed and partial load. Gradually increase speed and load while monitoring output current, voltage, temperature, vibration, and process performance.

Run the system at typical operating points and at peak load. Verify that full-load current stays within the motor and drive ratings. If the drive trips on acceleration, lengthen the ramp time or increase current limit. If deceleration causes overvoltage faults, add a braking resistor or extend the deceleration ramp.

For load-type specific guidance, see our article on VFD selection based on load type.

Step 8: Communication, Documentation, and Handover

If the drive communicates with a PLC, SCADA system, or building automation network, verify fieldbus settings, Modbus addresses, or Ethernet/IP configuration. Check baud rate, termination resistors, and node addresses on RS-485 networks. Test remote start/stop, speed reference, fault reset, and status feedback under load. Network errors during VFD testing and commissioning are often caused by simple configuration mismatches.

Save a full parameter backup to at least two locations. Record test results including supply voltage, output current, DC bus voltage, motor speed, temperatures, and vibration readings. Prepare a commissioning report, as-built drawings, and a maintenance schedule. Conduct operator training on normal operation, emergency stop, and basic fault response.

Application-Specific Commissioning Notes

Different loads place different demands on the VFD during startup and operation. Adjust the commissioning sequence accordingly.

Pumps and Fans

Centrifugal pumps and fans follow the affinity laws. Torque rises with the square of speed, and power rises with the cube. Use V/Hz or sensorless vector control.

Keep minimum frequency above the level that causes pump overheating or fan stall. Use long ramps for large fans to avoid mechanical shock and supply voltage sag.

Conveyors

Conveyors need full torque from standstill. Sensorless vector or closed-loop vector control is usually best. Set a controlled acceleration ramp to prevent material spillage. Enable stall prevention and set current limits to protect the belt and gearbox during jams.

Compressors

Compressors are high-inertia loads with long run-up times. Use conservative acceleration ramps to avoid overloading the motor during startup. Configure unloading or bypass logic if the compressor cannot start against full head pressure. Monitor discharge pressure and motor current closely during load testing.

Hoists and Cranes

Hoists require precise torque control and mechanical brake management. Use closed-loop vector control with encoder feedback. Configure brake open/close timing carefully.

The motor must develop torque before the mechanical brake releases. Test both hoist and lower directions under load.

Common VFD Commissioning Mistakes

Even experienced engineers make these errors. Avoiding them saves time and money. For another angle on what goes wrong, see KEB America’s common mistakes when commissioning a VFD.

Skipping no-load testing. Coupling the load before verifying rotation and direction can damage couplings, gearboxes, and driven equipment.

Entering wrong motor data. The most common post-installation fault source is a mismatch between nameplate values and VFD parameters.

Missing auto-tune. Vector control without auto-tune produces poor torque response, hunting, and nuisance trips.

Over-aggressive ramps. Too fast an acceleration overloads the drive; too fast a deceleration trips overvoltage faults.

Poor grounding and cable routing. Running power and control cables together without shielding causes EMC issues and erratic behavior.

Inadequate documentation. Without parameter backups and baseline readings, future troubleshooting and maintenance take longer.

If a drive trips unexpectedly after commissioning, our VFD troubleshooting common issues guide covers the most likely causes.

VFD Commissioning Checklist

Use this checklist as a working document for every VFD startup. You can also reference the formal Virginia Tech VFD Start-Up Checklist or the ECalPro VFD Installation & Commissioning Checklist for additional sign-off formats.

Pre-Energization

•  LOTO applied and zero-energy state verified
•  VFD and motor nameplate ratings match the application
•  Installation inspected for damage, clearance, and ventilation
•  Input/output wiring correct and torqued
•  Grounding and bonding verified
•  Power and control cables separated and shielded
•  Motor insulation resistance tested and acceptable
•  Input voltage measured and within range
•  Voltage imbalance calculated and below 3%

Power-Up and Configuration

•  DC bus charges without fault
•  Cooling fan operates
•  Motor nameplate data entered correctly
•  Control mode selected for the application
•  Command source and speed reference configured
•  Frequency limits, ramps, and protection set
•  Auto-tune completed successfully

Functional and Load Testing

•  No-load rotation test completed
•  Motor direction verified and corrected if needed
•  Speed reference inputs tested
•  Start/stop commands tested locally and remotely
•  Load test completed at partial and full load
•  Current, temperature, and vibration within limits
•  Protection functions tested
•  Network/communication verified under load

Handover

•  Parameter backup saved to two locations
•  Test results and baseline measurements recorded
•  Commissioning report completed
•  As-built drawings and manuals provided
•  Operator and maintenance training conducted
•  Outstanding issues documented

Frequently Asked Questions

What are the basic VFD commissioning steps?

The basic VFD commissioning steps are safety verification, pre-energization checks, first power-up, motor data entry, control mode selection, auto-tune, no-load test, load test, and documentation/handover.

How do you commission a VFD?

Learning how to commission a VFD means following a structured sequence: verify installation and safety, enter motor nameplate data, run auto-tune, test uncoupled rotation, then load test and document. Each step confirms that the drive and motor are ready for the next.

What is a VFD commissioning checklist?

A VFD commissioning checklist is a structured document that verifies installation quality, electrical safety, parameter configuration, functional testing, load testing, and handover documentation before a drive is released to production.

How long does VFD commissioning take?

A simple low-voltage drive on a pump or fan may commission in two to four hours. Complex multi-drive systems, high-voltage drives, or networked installations can take one to three days including load testing and documentation.

What tests are done during VFD commissioning?

Common tests include insulation resistance, continuity, supply voltage verification, no-load rotation, direction verification, speed reference response, protection function tests, and loaded performance tests.

Can you commission a VFD without load?

Part of commissioning can be done without load, including motor data entry, auto-tune, and no-load rotation testing. However, final load testing is required to confirm that the drive performs correctly under real operating conditions.

What is motor identification run in VFD?

The motor identification run, also called auto-tune, is a VFD routine that measures the motor’s electrical parameters to optimize torque control, current regulation, and speed response.

What documents are required for VFD commissioning?

Required documents typically include the VFD manual, motor nameplate data, as-built electrical drawings, parameter backup, insulation test records, commissioning report, and training sign-off sheets.

Conclusion

VFD commissioning steps are not optional extras. They are the quality gate that proves the drive, motor, and load will work together reliably. Following the correct VFD commissioning procedure protects equipment, reduces startup delays, and gives maintenance teams the baseline they need for predictive upkeep.

Start with safety and pre-commissioning checks, enter motor data carefully, run auto-tune, test without load before connecting the machine, then load test and document everything. It also closes the loop on the work done during sizing and installation. For the earlier stages of the project, review our guides on VFD power calculation, VFD installation best practices, and motor compatibility with VFD.
