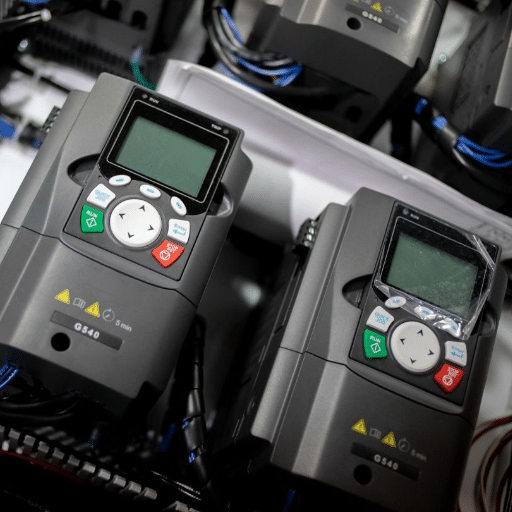

VFD Control Modes Explained: A Practical Engineer’s Guide

The four main VFD control modes are V/Hz (scalar) control, sensorless vector control, closed-loop vector control, and direct torque control (DTC). Each mode trades cost, complexity, and performance differently, and choosing the wrong one is one of the most common reasons a VFD underperforms in the field. This guide explains how each mode works, when to use it, and how to configure it on a real drive.

Most VFDs ship from the factory in V/Hz mode. That default is fine for pumps, fans, and simple conveyors, but it can stall an extruder, drift on a winder, or overspeed a torque-controlled test stand.

In 2024, a maintenance team in Ohio installed a standard 75-HP drive on a plastics extruder and left it in V/Hz. The motor stalled repeatedly below 2 Hz because the drive could not produce enough starting torque. Switching to sensorless vector control and running auto-tuning fixed the stalls and cut scrap by 12% in the first month. The hardware did not change. Only the control mode did.

This article is for specifying engineers, automation technicians, and plant managers who need a clear decision framework. You will learn what each VFD control mode does, how VFD vector control vs V/f control compares, when sensorless vector control VFD is the right upgrade, and why flux vector control VFD or direct torque control VFD justify their higher cost. You will also see how to switch modes on real drives and avoid the five mistakes that waste money and cause downtime.

Key Takeaways

• VFD V/f control is simple and low-cost but delivers only 60–80% starting torque below 2 Hz and ±2–3% speed regulation.
• Sensorless vector control VFD produces 150–200% starting torque at 0.3–0.5 Hz without an encoder and holds speed within ±0.5%.
• Flux vector control VFD uses an encoder to reach ±0.01% speed regulation and enables precise torque control for winders and tensioning.
• Direct torque control VFD responds in under 1 millisecond and delivers full torque at zero speed, suiting cranes, hoists, and high-dynamic test stands.
• Auto-tuning is required for vector modes; V/Hz supports multiple motors on one drive, while vector and DTC modes typically control one motor per drive.

For a visual walkthrough of how V/Hz, vector, and flux control compare, watch this manufacturer explainer:

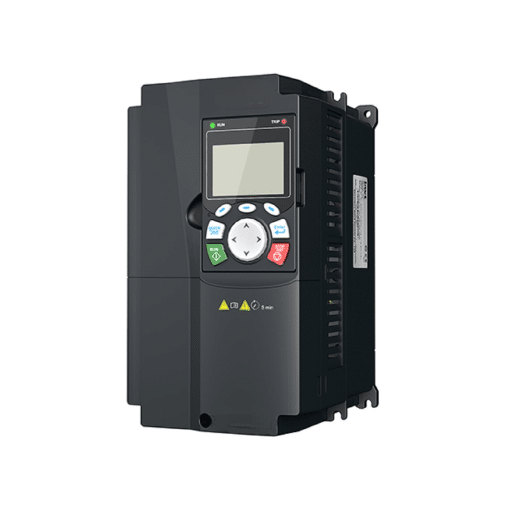

What Are VFD Control Modes and Why Do They Matter?

The Difference Between the Control Algorithm and the Operating Mode

A VFD control mode is the algorithm the drive uses to generate output voltage and frequency. The most common algorithms are V/Hz, sensorless vector, closed-loop vector, and DTC. These determine how precisely the drive controls motor flux, torque, and speed.

An operating mode is what the drive is commanded to regulate. In speed control mode, the drive holds motor RPM constant and lets torque vary with load. In torque control mode, the drive holds the torque constant and lets the speed vary until it hits a limit. You can run speed control with V/Hz, vector, or DTC. You usually need a vector or DTC for reliable torque control.

This distinction matters because a common mistake is asking, “Which control mode do I need?” when the real question is, “Which algorithm and which operating mode does my process need?” If you only need to slow a fan, V/Hz speed control is enough. If you need to hold constant tension on a winder, you need closed-loop vector torque control.

Why the Default Setting Is Not Always the Right Setting

Manufacturers set V/Hz as the default because it works for the widest range of applications with no tuning. However, the default assumes the load has modest starting torque, tolerates loose speed regulation, and never runs near zero speed for long.

Many industrial loads violate one or more of those assumptions. Conveyors need high breakaway torque. Mixers need torque at low speed during startup. Winders need precise speed and torque. Cranes need fast torque reversal. In each case, the default V/Hz setting leaves performance and reliability on the table.

The good news is that most modern drives can run multiple control modes. The hardware is often the same. The difference is firmware selection, parameter setup, and in the case of closed-loop vector, an encoder. For a broader view of how to match the entire drive to your application, see our guide on how to choose a VFD.

The Four Main VFD Control Modes Explained

V/Hz Control: Simple, Economical, and Widely Used

V/Hz control, also called V/f control or scalar control, keeps the ratio of voltage to frequency constant. Since motor flux is proportional to voltage divided by frequency, maintaining that ratio keeps flux steady as speed changes. The drive outputs a voltage waveform with frequency proportional to the speed command and does not measure actual rotor speed.

This open-loop approach is simple, reliable, and inexpensive. It is the right choice for centrifugal pumps, fans, blowers, and light conveyors where starting torque is low and speed regulation of ±2–3% is acceptable. V/Hz also supports multiple motors connected to one drive, which is useful for fan arrays or small pump groups.

The weakness appears at low speed and high torque. Below about 2 Hz, the voltage drop across stator resistance becomes a large fraction of the applied voltage. Flux collapses, torque falls, and the motor can stall or overheat. If your application needs high starting torque from standstill, V/Hz is not the right algorithm. For a deeper look at the basics, see this AutomationDirect video on VFD control modes explained: V/Hz, vector, and flux control.

Sensorless Vector Control: Torque Without an Encoder

Sensorless vector control, also called open-loop vector control, estimates motor flux and torque in real time using a mathematical model of the motor. The drive measures output current and voltage, runs them through flux and torque estimators, and adjusts the voltage vector to maintain commanded torque while compensating for slip.

The big advantage is torque at low speed. A properly tuned sensorless vector drive can deliver 150–200% of rated starting torque at 0.3–0.5 Hz. Speed regulation improves to roughly ±0.5%, compared to ±2–3% for V/Hz. That makes sensorless vector ideal for extruders, mixers, conveyors, positive-displacement pumps, and any constant-torque load that must break away from a full standstill.

The trade-off is complexity. Sensorless vector requires auto-tuning to measure stator resistance, rotor resistance, inductance, and magnetizing current. Performance also degrades below about 1 Hz because back-EMF becomes too small to estimate accurately. For most general industrial applications above a few hertz, however, sensorless vector is the sweet spot between cost and performance.

Closed-Loop Vector / Flux Vector Control: Precision With Feedback

Closed-loop vector control adds a physical feedback device, usually an encoder mounted on the motor shaft. The encoder reports actual rotor position and speed to the drive, eliminating the estimation errors that limit sensorless vector at very low speeds. This is why it is often called flux vector control VFD or field-oriented control.

With encoder feedback, speed regulation tightens to ±0.01% or better. Torque response drops to milliseconds. Most importantly, the drive can operate in true torque control mode, commanding a specific torque rather than a speed. That is essential for center-driven winders, unwinders, tensioning stands, and test stands.

The cost is real. An encoder adds $200–800, plus cabling, mounting labor, and ongoing maintenance. Encoder wiring is also vulnerable in harsh environments. Closed-loop vector is worth the investment when precision creates measurable value: consistent web tension, synchronized multi-axis motion, or accurate positioning. For standard pumps and fans, it is usually unnecessary overhead.

Direct Torque Control: The Fastest Dynamic Response

Direct torque control VFD technology, pioneered by ABB and now offered by several premium manufacturers, takes a different approach from vector control. Instead of decoupling current into flux and torque components through coordinate transforms, DTC directly controls stator flux and electromagnetic torque as the primary variables. It selects the optimum inverter switching state every control cycle based on instantaneous torque and flux error.

Because DTC bypasses the intermediate current-control loops used in vector control, torque response time falls below 1 millisecond. DTC also maintains full torque at zero speed without an encoder in many applications. The control cycle is extremely fast; ABB’s implementation updates the motor model every 25 microseconds. For authoritative technical background, see the ABB white paper on DTC.

DTC is best for high-dynamic loads: crane hoists, mining conveyors, dynamometer test stands, high-performance machine tool spindles, and any application where torque must change direction or magnitude almost instantly. The trade-offs are higher computational demand, typically higher drive cost, and the fact that DTC drives usually control one motor at a time.

VFD Control Modes Comparison Table

Control Mode	Feedback	Speed Regulation	Starting Torque	Encoder Required	Typical Cost	Best Applications
V/Hz (V/f)	None (open loop)	±2–3%	60–80% at 2 Hz	No	Base	Pumps, fans, blowers, light conveyors
Sensorless vector	Estimated from current/voltage	±0.5%	150–200% at 0.3–0.5 Hz	No	Base	Extruders, mixers, conveyors, positive-displacement pumps
Closed-loop vector	Encoder (1024–4096 PPR typical)	±0.01%	Full torque at 0 Hz	Yes	Drive + $200–800 encoder	Winders, unwinders, cranes, tensioning, positioning
DTC	Sensorless or optional encoder	±0.1%	Full torque at 0 Hz	Optional	Premium	Cranes, hoists, test stands, high-dynamic loads

Use this table as a quick reference, but remember that load type, precision requirements, and budget together determine the right choice. If you need help sizing the drive before choosing a control mode, our VFD sizing guide walks through the current-based method.

Speed Control vs Torque Control: Two Ways to Command a VFD

Speed Control Mode: Holding RPM Constant

In speed control mode, the drive regulates motor speed. If the load increases, the drive increases torque to hold the commanded RPM. If the load decreases, the drive reduces torque. This is the default operating mode for most VFDs and matches the majority of industrial applications.

Speed control works with any control algorithm, but the precision depends on the algorithm. V/Hz speed control holds speed within a few percent. Sensorless vector holds it within about half a percent. Closed-loop vector holds it within a few hundredths of a percent. The algorithm you choose determines how well the drive can hold speed under changing load.

Torque Control Mode: Holding Force Constant

In torque control mode, the drive regulates motor torque. The motor produces the commanded torque regardless of speed, until it reaches a speed limit. This mode is essential for applications where force or tension matters more than RPM.

A center-driven winder is the classic example. As the roll diameter grows from 6 inches to 36 inches, the drive must increase torque to maintain constant web tension. In speed mode, the winder would change tension as diameter changes. In torque mode, tension stays constant. The same principle applies to unwinders, tensioning stands, and some extrusion processes.

Which Applications Need Torque Control?

Torque control generally requires vector control or DTC. V/Hz cannot independently control torque because it does not model motor flux. Sensorless vector can approximate torque control in some applications, but drift from temperature and parameter variation makes it unreliable for precision work.

Choose torque control when the process needs consistent force or tension, when the load can suddenly disappear and the motor must not overspeed, or when the application needs to follow a torque profile rather than a speed profile. Always set speed limits when using torque mode; a sudden load drop can cause dangerous overspeed if the upper limit is missing.

How to Choose the Right VFD Control Mode for Your Application

Decision Tree: From Load Type to Control Mode

Start with the load, not the drive. Ask these questions in order:

1. Is the load a pump, fan, or blower with modest starting torque? If yes, use V/Hz control. If no, continue.
2. Does the application need speed regulation better than ±1% or starting torque above 100% of rated? If yes, use sensorless vector control. If no, V/Hz is still sufficient.
3. Does the application need precise torque control, positioning accuracy, or speed regulation better than ±0.1%? If yes, use closed-loop vector control with an encoder.
4. Does the application need sub-millisecond torque response, fast direction reversal, or full torque at zero speed without an encoder? If yes, use DTC.

This decision tree is the core of VFD control modes explained in practice. The right answer depends on what the process demands, not on the most advanced mode the budget allows.

Load Type Mapping: Constant Torque vs Variable Torque

Control mode selection is closely tied to load type. Variable torque loads, such as centrifugal pumps and fans, follow the affinity laws: torque rises with the square of speed and power rises with the cube. These loads need little starting torque and run fine on V/Hz. A quadratic V/Hz curve can even save a small amount of extra energy by matching voltage to the actual torque demand.

Constant torque loads, such as conveyors, compressors, hoists, and extruders, demand the same torque at all speeds. They need high starting torque and good low-speed performance, which makes sensorless vector the minimum acceptable choice. The most demanding constant-torque applications, such as cranes and winders, need closed-loop vector or DTC.

For a complete framework on matching load type to drive selection, see our article on VFD selection based on load type.

When to Upgrade from V/Hz to Vector Control

Upgrade from V/Hz to sensorless vector when any of the following is true:

• The motor stalls or overheats below 5 Hz.
• Starting torque demand exceeds 100% of rated torque.
• Speed regulation tighter than ±1% is required.
• Load torque varies dynamically during operation.
• The motor runs for extended periods at low speed.

The upgrade usually costs nothing in hardware. Most general-purpose VFDs include sensorless vector as a configurable mode. The investment is the time to set parameters correctly and run auto-tuning. Skipping auto-tuning is a common mistake that leaves the drive performing almost like V/Hz.

Configuring Control Modes on Real VFDs

Common Parameter References by Manufacturer

Switching control modes is usually a single parameter change, but the parameter number differs by manufacturer. Here are common examples:

Manufacturer	Parameter	Typical Settings
Siemens SINAMICS	P1300	0 = V/f, 20 = vector with encoder, 21 = sensorless vector
ABB ACS880	99.05	0 = V/Hz, 1 = scalar, 2 = DTC
Danfoss VLT / FC	1-00	0 = speed open loop, 1 = speed closed loop, 3 = flux vector
Rockwell PowerFlex 525	P035	0 = V/Hz, 1 = sensorless vector, 2 = economy
Yaskawa GA700	A1-02	0 = V/f, 2 = open-loop vector, 3 = flux vector
Delta C2000	00-11	0 = V/f, 2 = SVC, 3 = FOC + PG

Always consult the specific drive manual before changing these parameters. Some drives require a power cycle or restrict mode switching while running. For a broader look at parameter setup, see our VFD parameter settings guide.

How to Run Auto-Tuning for Each Mode

Auto-tuning teaches the drive the electrical characteristics of the connected motor. The procedure varies by mode:

V/Hz mode: Auto-tuning is usually optional. Enter the motor nameplate current, voltage, frequency, and RPM for overload protection. Some drives offer a basic tune to improve slip compensation.

Sensorless vector mode: Auto-tuning is required. A static tune measures resistance and inductance with the rotor locked or free. A rotating tune is more accurate because it measures saturation and magnetizing current across the speed range. Use rotating tune when possible with the load disconnected.

Closed-loop vector mode: Auto-tuning is required after encoder installation. The drive must know encoder pulses per revolution, motor pole count, and direction. A rotating tune aligns the encoder feedback with the motor model.

DTC mode: DTC drives usually require a motor identification run rather than a traditional auto-tune. The identification run measures motor parameters and builds the internal model used for direct torque and flux control.

Common Configuration Mistakes

The most common mistake is switching to vector mode without running auto-tuning. The drive then uses default motor parameters that rarely match the actual motor. The result is poor torque, unstable speed, and sometimes overheating.

Other mistakes include entering incorrect nameplate data, selecting vector mode while the motor is still running in V/Hz parameter sets, running auto-tune with excessive load inertia that prevents rotation, and using long motor cables that distort the test signals. For troubleshooting help, our guide on VFD troubleshooting common issues covers the symptoms of each mistake.

Real-World Examples: Control Mode Selection in Action

Example 1: Municipal Water Pump Station in Ontario

A municipal water treatment facility serving 120,000 residents ran four 75-kW centrifugal pumps on fixed-speed starters. After retrofitting with VFDs, the operators left the drives in default V/Hz mode. Energy savings from speed reduction were significant, but pressure control was coarse and water hammer occasionally damaged seals.

The system integrator switched the drives to sensorless vector, ran auto-tuning, and configured a quadratic V/Hz curve. Pressure control became smoother, water hammer disappeared, and motor efficiency improved by an additional 4%. The incremental gain from better control mode selection turned a good retrofit into a highly optimized system.

Example 2: Plastic Extruder in Ohio

A process engineer named James Chen specified a standard 75-HP drive for a plastics extruder and left it in V/Hz. On startup, the motor stalled at 2 Hz because V/Hz delivered only about 80% of the starting torque the application needed. The extruder generated scrap during every restart.

After switching to sensorless vector and running a rotating auto-tune, the drive delivered 180% starting torque at 0.3 Hz. Startup became smooth and repeatable. Scrap dropped 12% in the first month, and the plant avoided replacing the drive with a larger, more expensive unit.

Example 3: Paper Winder in South Carolina

A textile and paper converter ran a winding line with V/Hz speed control. Web tension drifted ±8%, causing rejected rolls and customer complaints. The maintenance team suspected the motor was undersized.

Instead of replacing the motor, they added a 1,024 PPR encoder and switched the drive to closed-loop vector torque control. Speed regulation improved to ±0.02%, and tension variation dropped to ±1.2%. The $450 encoder paid for itself in three weeks through reduced rejects and happier customers.

Energy Efficiency and Control Modes

Does Control Mode Affect Energy Savings?

The largest energy savings on variable-torque loads come from speed reduction, not from the control mode itself. Reducing a fan or pump to 80% speed cuts power consumption to roughly 50% of full load because power scales with the cube of speed. That saving is available whether the drive runs V/Hz or vector.

Control mode does affect motor efficiency at a given operating point. A properly auto-tuned vector drive optimizes flux levels for the specific motor rather than using a conservative default. Manufacturer application notes commonly report efficiency improvements of 3–8% compared to default V/Hz parameters. The improvement is smaller than the savings from speed reduction, but it is also free once the drive is tuned.

Flux Optimization and Motor Efficiency Gains

V/Hz drives often over-magnetize the motor slightly to ensure stable operation across unknown motor parameters. That extra flux increases core losses and reduces efficiency. Vector control measures the actual magnetizing current and sets flux precisely. The result is lower losses at partial load, cooler motor operation, and slightly better efficiency.

For facilities with many VFDs, these small per-motor gains add up. Since electric motors consume roughly 40–53% of global electricity, even a few percentage points of efficiency improvement has meaningful impact. The U.S. Department of Energy provides additional guidance on motor system efficiency at its motor systems resource page.

Common Mistakes When Selecting VFD Control Modes

Mistake 1: Leaving the Drive in V/Hz for High-Torque Applications

V/Hz is the default, but it is not universal. Conveyors, extruders, mixers, and positive-displacement pumps often need more starting torque than V/Hz can deliver. If the motor stalls or trips on overload during startup, the control mode is the first thing to check.

Mistake 2: Skipping Auto-Tuning in Vector Modes

A sensorless vector drive with default parameters performs only slightly better than V/Hz. Auto-tuning takes 30 seconds to a few minutes and unlocks the torque and accuracy benefits that justify selecting vector mode in the first place.

Mistake 3: Adding an Encoder When Sensorless Vector Is Sufficient

Encoders add cost, wiring, and maintenance. If ±0.5% speed regulation and 150% starting torque meet the application’s needs, sensorless vector is the right choice. Reserve closed-loop vector for applications where the precision genuinely creates value.

Mistake 4: Confusing Speed Control and Torque Control

V/Hz and vector are control algorithms. Speed and torque are operating modes. A winder needs torque mode, not just vector control. A fan needs speed mode, and V/Hz is usually enough. Match both the algorithm and the operating mode to the process.

Mistake 5: Running Multiple Motors on a Vector or DTC Drive

V/Hz can run several motors in parallel from one drive, which is useful for fan arrays or small pump groups. Sensorless vector, closed-loop vector, and DTC are designed for one motor per drive because the drive’s motor model assumes a specific connected motor. Running multiple motors on a vector or DTC drive usually causes instability and errors.

Frequently Asked Questions

What is the simplest VFD control mode?

V/Hz control is the simplest. It requires no encoder, no auto-tuning, and minimal parameter setup. It is the default mode on most general-purpose VFDs and works well for pumps, fans, and light conveyors.

Can I switch control modes after the VFD is installed?

Yes, on most modern drives. Switching from V/Hz to sensorless vector usually requires changing one parameter and running auto-tuning. Switching to closed-loop vector requires installing an encoder and configuring feedback parameters. Some drives require a power cycle. Always consult the manual.

Do I need an encoder for vector control?

Not for sensorless vector. Sensorless vector estimates motor flux and speed from electrical measurements. Closed-loop vector requires an encoder or resolver for precise feedback. DTC often does not need an encoder, though some applications benefit from one.

What is the difference between sensorless vector and closed-loop vector?

Sensorless vector uses a mathematical motor model and has no physical feedback device. It delivers ±0.5% speed regulation and strong low-speed torque. Closed-loop vector uses an encoder, achieves ±0.01% speed regulation, and enables true torque control. The trade-off is encoder cost and maintenance.

Is DTC better than vector control?

DTC is faster but not universally better. It delivers sub-millisecond torque response and full torque at zero speed without an encoder, which is ideal for cranes, hoists, and test stands. For less dynamic applications, sensorless vector or closed-loop vector may be more cost-effective.

Which control mode is best for energy savings?

The biggest energy savings come from reducing speed on variable-torque loads, which works in any mode. A properly tuned vector drive can improve motor efficiency by 3–8% over default V/Hz through flux optimization, but the dominant savings come from the application of variable speed itself.

Conclusion

VFD control modes explained clearly come down to one idea: match the algorithm to the load. V/Hz is simple and economical for pumps and fans. Sensorless vector adds torque and accuracy for conveyors, mixers, and extruders. Closed-loop vector with an encoder delivers the precision that winders, tensioning systems, and positioning applications require. Direct torque control provides the fastest response for cranes, hoists, and high-dynamic test stands.

Choosing the right mode is not about buying the most advanced drive. It is about understanding what the process actually needs and configuring the drive to deliver it. Auto-tuning, correct parameter entry, and a clear distinction between speed control and torque control turn a good drive into a reliable, efficient system.

If you are selecting a VFD for an extruder, conveyor, winder, or other motor control application, explore our VFD drives configured for V/Hz, sensorless vector, closed-loop vector, and DTC operation across low and high voltage ranges. Our application engineers can help you match the right control mode to your load and precision requirements.
