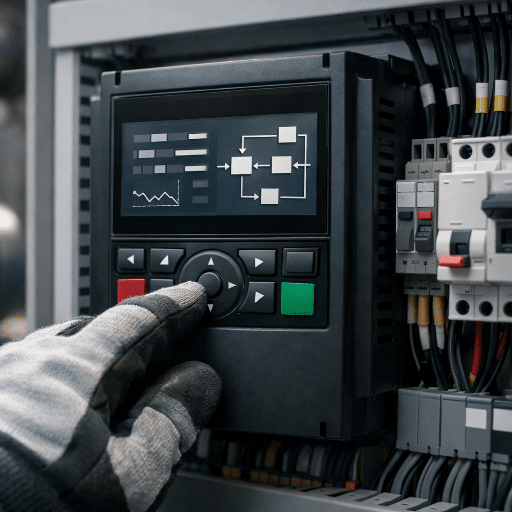

VFD Ramp Settings: How to Tune Acceleration and Deceleration Without Trips
The best VFD ramp settings start with a conservative acceleration and deceleration time, then tighten only after the drive proves it can start and stop under real load without overcurrent or overvoltage trips. Most drives leave the factory with ramps near 0.5 to 1.0 seconds. That’s fine for a test bench. It’s almost always wrong for a loaded pump, fan, or conveyor.
A maintenance team in Ohio learned this on a new 30 HP conveyor. The drive was wired correctly, the motor nameplate data was entered, and the operator pressed start.
The drive tripped on overcurrent before the belt reached full speed. The acceleration time was still at the factory default of 0.5 seconds. Raising it to 8 seconds cleared the fault and the line ran smoothly for the next three shifts.
In this guide you’ll learn how VFD ramp settings work, how to choose starting values for common loads, and how to tune accel and decel without chasing trips. We’ll also cover how to calculate ramp time from inertia when you need to, S-curve ramps, multi-ramp profiles, and when a braking resistor is the right answer instead of a longer decel time.
Key Takeaways
- Start with conservative ramp times and shorten only if the drive runs cleanly under load.
- Short acceleration causes overcurrent trips; short deceleration causes overvoltage trips.
- Pumps need 5–15 s acceleration and 10–30 s deceleration; fans need 10–30 s for both; conveyors need 3–10 s.
- Use S-curve ramps to reduce jerk and mechanical shock on pumps, conveyors, and hoists.
- Add a braking resistor when the process can’t tolerate the deceleration time required to avoid overvoltage.
What Are VFD Ramp Settings?
VFD ramp settings control how fast the drive changes output frequency during speed changes. The two most common are acceleration time and deceleration time. Acceleration time is how long the drive takes to go from 0 Hz to maximum frequency. Deceleration time is how long it takes to return from maximum frequency to 0 Hz.
Some drives measure ramp time between minimum and maximum frequency. Others use base frequency instead of maximum frequency. Always check the manual for the exact definition, because the same number can mean different things across brands.
Most VFDs also offer a ramp profile choice. A linear ramp changes speed at a constant rate from start to finish. An S-curve ramp softens the start and end of the speed change, reducing mechanical jerk and peak current. A few drives allow a custom curve, but linear and S-curve cover the vast majority of industrial applications.
| Ramp Profile | Shape | Best For |
|---|---|---|
| Linear | Constant rate from start to finish | General purpose, simple loads |
| S-curve | Soft start and end, faster middle | Pumps, conveyors, cranes, fragile loads |
| Custom | User-defined points | Special machinery or test stands |
Why Ramp Settings Matter: The Physics in Plain Terms
During acceleration, the motor must produce enough torque to overcome load torque and accelerate the inertia of the motor, coupling, and driven machine. The faster you ask the motor to accelerate, the more torque it needs, and the more current it draws. If the ramp is too short, the current exceeds the drive or motor limit and the drive trips on overcurrent.
During deceleration, the motor becomes a generator. The load inertia keeps the rotor spinning and pushes energy back into the VFD DC bus. The faster you decelerate, the more energy returns in a short time. If the deceleration time is too short, the DC bus voltage rises until the drive trips on overvoltage or activates the braking chopper.
That’s why the two classic ramp-related faults are so predictable. Acceleration problems show as overcurrent. Deceleration problems show as overvoltage. Once you see that pattern, tuning becomes a process of adjusting time, not guessing.
| Phase | What the motor does | Fault if ramp is too short |
|---|---|---|
| Acceleration | Draws current to build torque and speed | Overcurrent trip |
| Deceleration | Generates energy back to the DC bus | Overvoltage trip |
Typical Starting Values by Application
The right starting point depends on load inertia, load torque, and how sensitive the process is to speed changes. The following table gives practical ranges for common applications. Start at the long end of the range and shorten only if the drive and process allow it.
| Application | Acceleration Time | Deceleration Time | Notes |
|---|---|---|---|
| Centrifugal pump | 5–15 s | 10–30 s | Longer decel avoids water hammer |
| Centrifugal fan | 10–30 s | 30–40 s | High inertia; long decel avoids overvoltage |
| Horizontal conveyor | 3–10 s | 3–10 s | Watch product spillage |
| Incline conveyor | 5–15 s | 5–15 s | Gravity adds effective inertia |
| Compressor | 5–15 s | 5–15 s | High starting torque demand |
| Hoist or crane | 2–5 s | 2–5 s | May need braking resistor |
| High-inertia load | 15–60 s | 15–60 s or braking resistor | Flywheels, large fans, centrifuges |
These ranges are starting points. They aren’t final answers.
A small inline pump may run happily at 5 seconds. A large cooling tower fan may need 40 seconds to stop without tripping. Test under real load and adjust.
How to Calculate VFD Ramp Time from Load Inertia
For most field work, rules of thumb are enough. But when you need a rough calculation, or when you’re sizing a braking resistor, the basic relationship is simple:
t = (J × Δω) ÷ T
Where:
- t = ramp time in seconds
- J = total inertia reflected to the motor shaft in kg·m²
- Δω = change in angular velocity in rad/s
- T = available torque for acceleration or deceleration in N·m
To convert motor speed to angular velocity, use ω = 2π × RPM ÷ 60. For a 1,750 RPM motor going from 0 to full speed, Δω is about 183 rad/s.
For deceleration with a braking resistor, the available braking torque becomes the limiting factor. A manufacturer-neutral guide to braking resistor sizing uses a similar form: t = (J × ω) ÷ T_brake.
In practice, many technicians don’t know the exact inertia of the driven machine. Start with the table above, then refine by test. If you need a tight ramp and can’t tolerate trial and error, measure or estimate inertia and use the formula with a 25 percent safety margin.
Quick Calculation Example
Imagine a 10 kg·m² load driven by a 1,750 RPM motor with 50 N·m of available acceleration torque. The change in angular velocity is about 183 rad/s. The ramp time is:
t = (10 × 183) ÷ 50 = 36.6 seconds
Add a 25 percent safety margin and you get about 46 seconds. That is why high-inertia loads often need long ramps or a braking resistor.
How to Tune VFD Ramp Settings: Step-by-Step Workflow
Follow this workflow after motor nameplate data, frequency limits, and control mode are set. If you need help with nameplate entry, see our VFD motor nameplate parameters guide first.
1. Enter Motor Data and Run Auto-Tune
Every ramp calculation depends on an accurate motor model. Enter voltage, FLA, frequency, RPM, and power exactly as shown on the nameplate. Run auto-tune if the drive supports vector control. Skipping this step makes ramp tuning unreliable.
2. Start with a Conservative Ramp
Choose a ramp time from the long end of the application range. A pump that might work at 5 seconds should start at 10 or 15 seconds. It’s easier to shorten a ramp that’s too long than to stop a trip that interrupts production.
3. Run a No-Load Test
Start and stop the motor with no mechanical load connected. Verify that direction is correct, the speed display makes sense, and the drive doesn’t trip. Listen for abnormal noise or vibration.
4. Run a Loaded Test and Monitor
Connect the load and run the drive through its normal speed range. Watch the drive display for output current and DC bus voltage. If your drive logs trends, use them. Otherwise, watch for fault codes during start and stop.
5. Adjust in Small Steps
If the drive starts cleanly, shorten acceleration by 2 to 3 seconds and retest. Stop when you see current peak near the drive limit or when the process starts to jerk. Do the same for deceleration, but watch for overvoltage trips instead of overcurrent.
6. Enable Stall Prevention and Overvoltage Control
Most modern drives can pause the ramp when current or DC bus voltage approaches the limit. Enable these functions before you try to shorten ramps further. They often let you run 20 to 30 percent tighter ramps without a trip.
7. Document the Final Values
Record the final acceleration time, deceleration time, ramp profile, and any stall-prevention settings in the drive log. The next technician shouldn’t have to rediscover what you already proved.
| Symptom | Likely Cause | First Fix |
|---|---|---|
| Overcurrent on start | Acceleration time too short | Lengthen acceleration time |
| Overvoltage on stop | Deceleration time too short | Lengthen deceleration time or enable OV control |
| Jerky start or stop | Ramp too aggressive | Use S-curve or lengthen ramp |
| Slow process response | Ramp too long | Shorten in 2–3 s steps if no trips occur |
S-Curve Ramps: When and Why to Use Them
An S-curve ramp adds a short period of slower acceleration at the beginning and end of the ramp. The middle of the ramp runs at a higher rate. The total ramp time may stay the same, but the mechanical shock is reduced.
Use S-curve on applications where sudden speed changes cause problems:
- Pumps: reduces water hammer and pressure spikes at start and stop
- Conveyors: reduces belt bounce and product spillage
- Hoists and cranes: reduces load swing
- Fragile product handling: reduces jerk that can damage conveyed material
There’s a trade-off. The effective acceleration in the middle of the ramp is higher than the average. If you enable S-curve and see overcurrent trips, lengthen the total ramp time rather than disabling the curve.
Multiple Ramp Profiles and PLC vs Internal Ramp
Many VFDs allow two or more independent ramp sets. A digital input or parameter set selects between them. It’s useful when one machine runs in different modes. Think of a threading cycle that needs a slow ramp and a rapid traverse that needs a fast ramp.
When a PLC sends speed commands, the VFD internal ramp acts as a rate limiter. If the PLC ramps more slowly than the VFD setting, the motor follows the PLC. If the PLC commands an instant step change, the VFD internal ramp limits the actual rate of speed change. Both layers work together, but the slower one always wins.
For coordinated multi-drive systems, make sure the PLC ramp and the VFD ramp are compatible. A mismatched ramp can cause one drive to lag another and create tension or slack in the process.
When You Need a Braking Resistor
A braking resistor gives the drive a place to dump regenerated energy during fast deceleration. You’ll need one when:
- The process cannot tolerate the long deceleration time required to avoid overvoltage
- The load has very high inertia, such as large fans, flywheels, or centrifuges
- The drive stops frequently, so regenerated energy is a recurring problem
- The application involves overhauling loads, such as lowering a hoist
To size a braking resistor, check the drive manufacturer’s recommendations first. They usually specify a resistance range and a duty cycle. There’s a common rule of thumb: multiply braking torque by the average braking speed and duty cycle to get resistor power. Then add a 25 percent safety margin.
Don’t disable overvoltage protection to force a faster stop. That trades a nuisance trip for a potential drive failure.
Common VFD Ramp Mistakes
Even experienced technicians make these mistakes. They’re easy to avoid once you know what to watch for.
Leaving the Factory Default
A factory default of 0.5 or 1.0 seconds works for a demo motor with no load. It rarely works for real machinery. Always change the default ramp to match the application.
Setting Decel Shorter Than Accel
Deceleration is usually harder on the DC bus than acceleration is on the current. If you need a fast stop, make sure you have either a long enough decel time or a braking resistor. Don’t assume accel and decel can be equal.
Disabling Protection to Silence a Trip
Raising the overvoltage trip level or disabling stall prevention may stop the fault code, but it doesn’t stop the physics. The drive or motor can still be damaged. Fix the ramp or add braking hardware instead.
Skipping Auto-Tune on Vector Control
Vector control depends on an accurate motor model. If auto-tune is skipped, the current and torque calculations are wrong, and ramp tuning becomes guesswork. Our VFD parameter settings guide covers this in more detail.
VFD Ramp Settings: FAQ
What are VFD ramp settings?
VFD ramp settings are the acceleration time and deceleration time parameters that control how quickly the drive changes motor speed. They prevent overcurrent trips during starts and overvoltage trips during stops.
What is VFD acceleration time?
Acceleration time is how long the VFD takes to ramp the motor from 0 Hz to maximum frequency. It’s the setting that controls how fast the motor speeds up. Shorter times demand more torque and current. Longer times reduce mechanical and electrical stress.
What is VFD deceleration time?
Deceleration time is how long the VFD takes to slow the motor from maximum frequency to 0 Hz. It’s the setting that controls how fast the motor stops. Shorter times cause the motor to regenerate more energy into the DC bus, which can trip the drive on overvoltage.
Why does my VFD trip on overcurrent when starting?
The acceleration time is usually too short for the load inertia. It’s usually a sign that the motor is being asked to accelerate faster than the load allows. Lengthen acceleration time in 2 to 3 second steps until the start is clean. Also check that motor FLA and torque boost are set correctly.
Why does my VFD trip on overvoltage when stopping?
The deceleration time is too short and the motor is regenerating faster than the DC bus can absorb. It’s a sign that the load needs more time to slow down. Lengthen deceleration, enable overvoltage stall control, or add a braking resistor.
How do I calculate VFD ramp time?
Use t = (J × Δω) ÷ T. J is the total inertia reflected to the motor shaft, Δω is the change in angular velocity, and T is the available torque. Add a 25 percent safety margin. Most field work uses application rules of thumb instead.
What is S-curve acceleration on a VFD?
S-curve acceleration softens the start and end of the ramp to reduce jerk and mechanical shock. It is useful for pumps, conveyors, cranes, and fragile product handling.
Do I need a braking resistor?
You need a braking resistor if the process can’t tolerate the deceleration time required to avoid overvoltage, if the load has high inertia, or if the application involves frequent stopping or overhauling loads.
Conclusion
VFD ramp settings aren’t a detail to leave at the factory default. They determine whether the drive starts and stops cleanly or becomes a source of nuisance trips. The right approach is to start with a conservative acceleration time and deceleration time. Test under real load, and tighten only when the drive and process prove they can handle it.
Remember the two core relationships. Short acceleration causes overcurrent. Short deceleration causes overvoltage. Use S-curve to reduce mechanical shock, multiple ramp profiles for multi-mode machines, and a braking resistor when physics demands a faster stop than the DC bus can absorb.
