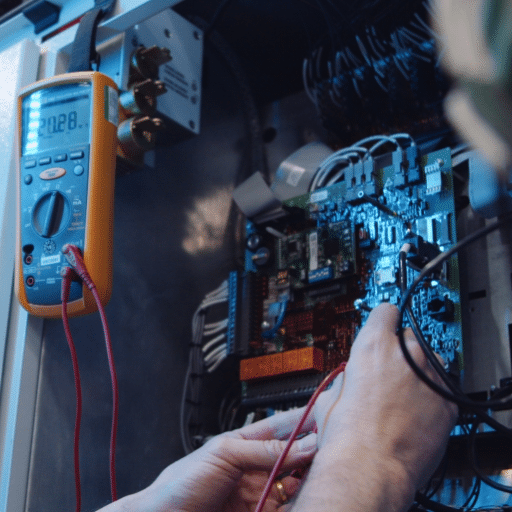

VFD Communication Fault: Modbus, RS-485 & Fieldbus Fixes
A VFD communication fault means the drive and the master controller stopped exchanging valid messages, so the drive tripped to protect the process or the motor. The cause is almost always a mismatch in serial settings, a wiring problem, or a register addressing mistake. It is rarely a defective drive.
At a water treatment plant in Arizona, controls engineer Diego spent a Friday afternoon commissioning six new pumps. Every drive worked perfectly on the bench. On the panel, three of them threw a VFD communication fault every few minutes. The PLC program was correct, the cable was new, and the parameters looked right. The problem was the termination resistor. The bus had 120 Ω at the PLC end but nothing at the far end. Once Diego added the second terminator, the faults cleared and the plant started on time.
This guide gives you the same checklist Diego used. You will learn what a VFD communication fault actually means, the 10-step diagnostic flow that finds most VFD communication fault causes, and how to fix VFD RS-485 communication problems before they cost you a startup.
Key Takeaways
- A VFD communication fault means the drive did not receive valid messages from the master within the timeout window. Check settings, wiring, and addressing before blaming the drive.
- The most common VFD communication fault causes are mismatched baud rate and parity, duplicate or wrong slave address, missing RS-485 termination, and incorrect register offsets.
- A VFD Modbus fault is usually a settings issue, not a protocol issue. Match every serial parameter exactly between master and slave.
- RS-485 termination requires a 120 Ω resistor across D+ and D− at both ends of the bus. A single missing terminator causes reflections and intermittent timeouts.
- Shielded twisted-pair communication cable must be grounded at one point only and routed away from VFD and motor power cables to avoid EMI.
What a VFD Communication Fault Actually Means
A VFD communication fault is a protective trip or alarm triggered when the drive loses reliable communication with the master controller. The master may be a PLC, a SCADA system, or another automation device. When valid messages stop arriving within the configured timeout, the drive either faults or follows a programmed safe state.
The fault is not the same as a VFD not running. A drive can communicate perfectly and still refuse to start because the run command source is set to the keypad or terminals instead of the bus. If the display shows a communication code, the issue is the data link. If the drive simply does not respond to remote commands, see the VFD not running checklist first.
For the full map of how every fault connects, start with the complete VFD troubleshooting guide.
The 10-Step VFD Communication Fault Checklist
Use this checklist in order. Most PLC VFD communication errors — and the typical PLC VFD communication error — are found in the first five steps.
- Match baud, data bits, parity, and stop bits on the master and every slave.
- Set a unique slave address for each VFD on the bus.
- Select the correct protocol, usually Modbus RTU for RS-485.
- Enable the communication control source so the drive accepts bus commands.
- Verify D+/D− polarity and swap the pair if there is no response.
- Add 120 Ω termination across D+ and D− at both ends of the bus.
- Ground the shield at one point only, typically at the master side.
- Route comm cables away from VFD and motor power cables.
- Check cable length against baud rate; reduce speed or add repeaters for long runs.
- Verify register addresses and function codes against the VFD manual.
This checklist handles the majority of VFD RS-485 communication faults without opening a support ticket. If your symptoms are unclear, the Shandong Electric engineering team can walk through the settings with you. Get VFD communication support →
Serial Parameter Mismatch and VFD Baud Rate Parity
The fastest way to create a VFD communication fault is to mismatch the serial parameters. Every setting must be identical on the master and the drive.
| Parameter | Typical values | Why it matters |
| Baud rate | 9600, 19200, 38400, 115200 | Must match exactly; a single step off causes silent timeouts |
| Data bits | 7 or 8 | Some drives default to 8; some PLCs use 7 |
| Parity | Even, Odd, None | Even parity is common in industrial VFDs |
| Stop bits | 1 or 2 | Must match on both sides |
| Slave address | 1 to 247 | Must be unique on the bus |
A single mismatch in VFD baud rate parity settings will stop all traffic. The master sends at 19200 baud and the drive listens at 9600 baud. Nothing gets through. The same happens when parity is set to Even on one side and None on the other, or when the stop-bit count differs. The messages arrive, but the CRC check fails, so the drive ignores them.
Controls tech Mei saw this during a packaging line upgrade. The integrator copied parameters from an older drive but missed that the new drive shipped at 9600 baud while the PLC was fixed at 19200. The VFD communication timeout alarm appeared every few seconds. Changing one baud-rate parameter fixed the entire line.
Common parameter locations vary by brand. On many drives the communication parameters are grouped under a serial or fieldbus menu. If you are unsure how to navigate them, our VFD parameter settings guide explains how to read and change the right parameters without guessing.
RS-485 Wiring, Termination, and Grounding
RS-485 is a differential bus. It relies on two wires, D+ and D−, carrying opposite signals. The receiver looks at the voltage difference between them. That makes it resistant to noise, but only if the wiring is correct.
Termination
Install a 120 Ω resistor across D+ and D− at both ends of the bus. This prevents signal reflections. A missing terminator at the far end is a classic cause of intermittent VFD communication faults that only show up under production conditions. Getting RS-485 termination VFD wiring right is the single most reliable fix for reflection-related timeouts.
Diego’s water treatment job is the textbook case. The bus ran from the PLC to six drives and stopped. With a terminator only at the PLC end, reflections bounced back down the line. At low traffic the bus looked fine. When all six drives started polling heavily, collisions and reflections caused timeouts. Adding the far-end terminator made the bus stable.
Polarity
If the drive never responds at all, try swapping D+ and D−. Some manufacturers label the pair A/B, others D+/D−, and the polarity is not always consistent across brands. A quick swap is a safe test.
Shield grounding
Use shielded twisted-pair cable and ground the shield at one point only, usually at the master or PLC side. Grounding both ends creates a ground loop. Grounding neither leaves the cable unprotected from EMI. For more on power quality and noise in VFD panels, see our notes on power quality and harmonics.
Cable Length, Baud Rate, and EMI in VFD Panels
RS-485 can run long distances, but speed and distance work against each other. At 9600 baud a well-built bus can reach roughly 1200 meters. At 115200 baud the practical limit shrinks dramatically. If you need both speed and distance, add an RS-485 repeater.
The bigger problem in most VFD panels is electromagnetic interference. VFD output cables and motor leads switch high currents at high frequency. They radiate noise. If the communication cable runs parallel to them, especially over a long distance, induced noise corrupts the data.
Route the communication cable in a separate tray or conduit. If cables must cross, cross them at 90 degrees. Keep at least 150 millimeters of separation where possible. In extremely noisy environments, add an RS-485 isolator between the PLC and the bus.
A system integrator named Raj found this at a metal stamping plant. The VFD Modbus fault appeared randomly when the press cycled. The comm cable was zip-tied to the motor leads for 10 meters. Moving the comm cable into its own tray and grounding the shield at the PLC side eliminated the timeouts completely.
Register Addresses, Function Codes, and Timeout Settings
Even with perfect wiring and matched baud rates, a VFD Modbus fault can still occur if the master asks for the wrong register.
Function codes
Most VFDs support:
- 03 — Read holding registers
- 06 — Write single register
- 16 — Write multiple registers
Using an unsupported function code returns an exception response or no response at all.
Register offsets
This is one of the most common PLC VFD communication errors. Some manuals list registers starting at 40001. Others use zero-based addresses. A master asking for register 0 may need to ask for 40001 or 40002 depending on the convention. Always verify the offset in the drive manual.
A case on the Siemens S7-1200 CM1241 RS485 Modbus RTU guide shows exactly this: the integrator polled register 0 when the drive expected 40001, so every read returned a fault.
Communication timeout
Most drives have a parameter that sets how long they wait for a valid message before tripping on VFD communication timeout. During commissioning you can often set this to a long value or disable it temporarily while you prove the basic link. Never leave it disabled in production; if the master fails, the drive needs to know.
Control source
The drive must be set to accept run commands and speed references from the communication network. If the control source is set to terminal or keypad, the bus can read status perfectly but the motor will not start. This looks like a communication fault but is actually a parameter issue.
VFD Fieldbus Options Beyond Modbus RTU
Modbus RTU over RS-485 is the most common serial protocol, but it is not the only option. Many modern drives support:
- Profibus-DP — classic fieldbus for Siemens ecosystems
- DeviceNet — common in Allen-Bradley installations
- CANopen — popular in embedded and OEM systems
- EtherNet/IP and Profinet — Ethernet-based protocols for faster data and easier topology
The troubleshooting logic is similar for any VFD fieldbus fault: match protocol settings, check cable termination and shielding rules for that network, verify node addresses, and confirm the drive is set to accept network control. If your application outgrows serial Modbus, an Ethernet fieldbus often pays for itself in faster commissioning and diagnostics.
Shandong Electric VFDs support the major industrial protocols used in automation systems worldwide. If you need help selecting the right interface, our engineering team can match the drive to your PLC and SCADA architecture.
VFD Communication Fault Codes by Brand
The exact code varies, but the meaning is the same: the drive lost communication with the master.
| Brand | Communication fault code | Notes |
| Schneider Altivar | ILF / SLF | Internal / serial link fault |
| Yaskawa | CE | Communications error |
| Siemens SINAMICS | F01910 / F07220 | Fieldbus / USS communication fault |
| Danfoss VLT | 8 / 13 / 34 | Serial comm / fieldbus / option fault |
| ABB ACS | 7510 | FBA communication fault |
| Allen-Bradley PowerFlex | Comm Loss | Communications loss |
| Inovance | Err16 / Err17 | Communication error / extension card |
| Generic drives | E-16 | Communication fault |
When to Repair, and When to Escalate
Most VFD communication faults are fixed by changing settings or correcting wiring. Repair is not usually required.
Escalate or replace hardware when:
- The communication port or board is physically damaged after a transient event
- The drive fails a loopback test with known-good settings and cable
- The protocol is fundamentally incompatible and cannot be bridged
- Repeated electrical surges have damaged the RS-485 transceiver
In those cases, a replacement communication option card or a drive with the right built-in fieldbus may be the only solution.
Preventing VFD Communication Faults
A few habits keep communication problems from coming back.
- Document every serial parameter before you leave the site. Screenshots of the comm settings page save hours later.
- Label slave addresses on the drive or inside the cabinet door.
- Use a USB-to-RS-485 analyzer to capture live traffic during commissioning. Seeing the raw request and response is the fastest way to spot a register offset or CRC issue.
- Loop-test every segment before the full system goes live.
- Back up parameters after a successful startup and store them in your VFD preventive maintenance file.
VFD Communication Fault: FAQ
What causes a VFD communication fault?
The most common VFD communication fault causes are mismatched baud rate, parity, or stop bits; duplicate slave address; missing RS-485 termination; incorrect shield grounding; wrong register address or function code; and communication cable routed too close to motor leads.
How do I fix a VFD Modbus fault?
Fix a VFD Modbus fault by matching every serial parameter between master and drive, setting a unique slave address, adding 120 Ω termination at both bus ends, grounding the shield at one point, and verifying the register address offset in the drive manual.
What baud rate should I use for VFD RS-485 communication?
9600 baud is the safest starting point for long cable runs. Use 19200 or 38400 for shorter buses where faster polling is needed. Higher baud rates need shorter cables or repeaters.
Where do I put termination resistors on an RS-485 VFD bus?
Place a 120 Ω resistor across D+ and D− at both physical ends of the bus. Do not place terminators on devices in the middle of the bus.
Why does my VFD communication timeout only under load?
A VFD communication timeout that appears only under load usually points to missing termination, EMI from motor cables, or an undersized power supply causing voltage sag on the communication card. Check termination and cable routing first.
How do I ground the shield on VFD communication cable?
Ground the shield at one point only, typically at the master or PLC side. Grounding both ends creates a ground loop. Grounding neither leaves the cable vulnerable to EMI.
What is the difference between Modbus RTU and fieldbus for VFDs?
Modbus RTU is a simple serial protocol over RS-485. Fieldbus systems like Profibus, DeviceNet, CANopen, EtherNet/IP, and Profinet offer faster data, better diagnostics, and easier integration with modern PLCs. The right choice depends on your control architecture.
What is a VFD fieldbus fault?
A VFD fieldbus fault is a communication loss on a higher-level industrial network such as Profibus, DeviceNet, CANopen, EtherNet/IP, or Profinet. The same troubleshooting rules apply: match protocol settings, verify node addresses, check cable termination and shielding for that network, and confirm the drive is set to accept network control.
Why does my PLC talk to the VFD in the office but not in the panel?
The difference is usually wiring, termination, or EMI. In the office the cable is short and quiet. In the panel the motor leads, poor grounding, or missing terminator create noise and reflections. Test with the exact panel layout and cabling.
VFD Communication Fault: Fix the Link, Not the Drive
A VFD communication fault looks like an electronics problem, but it is usually a configuration or wiring problem. The drive is doing exactly what it should do when it stops receiving valid commands.
- Match baud, data bits, parity, stop bits, and slave address first.
- Add 120 Ω termination at both ends of the RS-485 bus.
- Ground the shield at one point and route comm cable away from power cables.
- Verify register addresses, function codes, and the control-source parameter.
- Consider an Ethernet fieldbus when the system outgrows serial Modbus.
Most PLC VFD communication errors are solved in minutes once you know what to check. If your application needs a drive with built-in industrial protocols or expert help matching the drive to your PLC, the Shandong Electric VFD product range covers Modbus, Profibus, CANopen, EtherNet/IP, and Profinet options with full engineering support.
