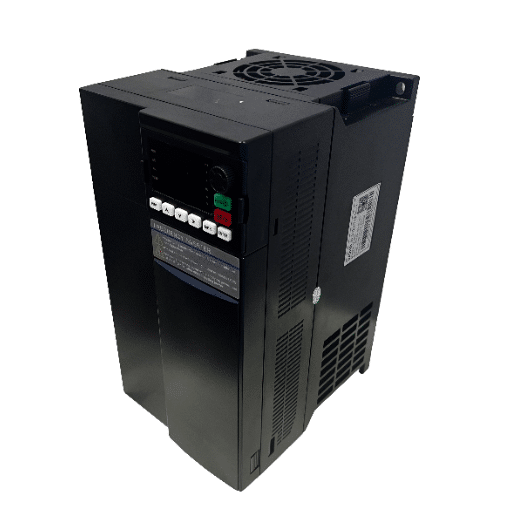

VFD Overvoltage Fault: Causes, Fixes & Braking Setup
A VFD overvoltage fault means the DC bus voltage rose above the drive’s safe limit. During deceleration, the motor can act like a generator and push energy back into the drive. If that energy has no safe path, the bus climbs and the drive trips.
Last winter, a maintenance engineer named Priya called from a water treatment plant outside Durban. A 37 kW pump ran perfectly while moving water. Every time the line stopped, the drive tripped on DC overvoltage before the motor reached zero speed.
Her team had already replaced the braking resistor. The trips continued. The real problem was a 4-second deceleration ramp on a high-inertia pump. The drive was protecting itself from energy that had nowhere to go.
This guide gives you a repeatable method for a VFD overvoltage fault. You will learn how to use trip timing first, then DC bus readings, then braking and supply checks. For a broader fault map, see our complete VFD troubleshooting guide.
Key Takeaways
- A VFD overvoltage fault is a DC bus energy problem, not just a fault code.
- Check when it trips first: decel, power-up, acceleration, or constant speed.
- Decel trips usually need a longer ramp, correct overvoltage control, or a working braking resistor path.
- Power-up trips usually point to DC bus sensing, capacitors, or rectifier hardware, not the resistor.
- Braking resistors must be sized by ohms, watts, and duty cycle. Too-low resistance can damage the braking IGBT.
What a VFD Overvoltage Fault Actually Means
A drive rectifies incoming AC into a DC bus, then inverts that DC into variable-frequency output. The DC bus is the energy buffer between input and output.
When the motor drives the load, energy flows from the bus to the motor. When the load drives the motor, energy flows back into the bus. That reverse flow is regeneration. Unchecked, that reverse flow becomes a VFD regeneration fault that ends in an OV trip.
A DC bus overvoltage VFD trip happens when regeneration or input voltage pushes the bus past the protection threshold. Typical thresholds are about 410 VDC on 230 V class drives and roughly 770-850 VDC on 400/480 V class drives. Always confirm the exact trip level in the drive manual. The opposite condition, a bus that falls too low, is covered in our VFD undervoltage fault guide.
Brand codes differ, but the meaning is similar. ABB often shows 3210 DC OVERVOLT. Yaskawa shows ov. Danfoss VLT drives often use Alarm 7. Whatever the label, the VFD OV fault is the same protection event, and you can match your display to the underlying DC bus condition with our VFD error code lookup. The ABB ACS355 user manual is a good example of how one manufacturer documents DC overvoltage and related parameters.
VFD Overvoltage Fault Codes by Brand
| Brand | Typical Code | Meaning |
|---|---|---|
| ABB | 3210 | DC OVERVOLT |
| Yaskawa | ov | DC bus overvoltage |
| Danfoss VLT | Alarm 7 | DC link overvoltage |
| Siemens | F0002 / F30002 | Overvoltage |
| Allen-Bradley PowerFlex | F12 | DC Overvoltage |
| Schneider Altivar | ObF | DC bus overvoltage |
| Mitsubishi | E.OV1 / E.OV2 / E.OV3 | Overvoltage during accel, constant speed, or decel |
Before You Reset: Safety and Fault Capture
Follow lockout/tagout before any hands-on work. Verify zero energy at the input terminals and the DC bus, then wait for the capacitors to discharge.
The DC bus can hold a lethal charge after power-off. Never assume the braking resistor discharged it. Measure P/+ and N/- with a properly rated meter before touching terminals.
Before you reset the fault, capture four items: trip timing, DC bus voltage, output frequency, and output current. Add one more note: what the load was doing. A pump stopping, a conveyor lowering, and a fan coasting all point to different causes.
The First Diagnostic Question: When Does the VFD Overvoltage Fault Trip?
Trip timing is the fastest way to narrow the cause. The same OV code can mean four different problems.
Deceleration Trips
A VFD overvoltage fault during deceleration usually means regeneration with no safe path. The motor becomes a generator while the load inertia keeps it turning.
The common fixes are a longer decel ramp, correct overvoltage or regen-stall settings, and a verified braking resistor path. If the trip only happens while stopping, start here.
Power-Up Trips
A VFD overvoltage on power up is different. The motor is not running, so the braking circuit is not the issue.
Suspect the DC bus sensing circuit, divider resistors, an op-amp or reference drift, aging capacitors, or rectifier hardware. The Longi power-up OV analysis explains why this branch points away from braking.
Acceleration Trips
OV during acceleration is less common but real. A driven or overhauling load can force the motor faster than the drive commands.
Inclined conveyors, unwinders, hoists, and belt resonance can create this pattern. A technician named Marco saw it on a Yaskawa V1000 driving a downhill belt. The drive tripped during acceleration because the load pushed energy back before the motor reached set speed.
Constant-Speed Trips
OV at steady speed often points to supply spikes, utility switching, poor power quality, or aging DC bus capacitors. It can also appear with long motor leads and reflected-wave transients.
If the fault is random and the drive is old, compare the displayed bus voltage with a meter reading. A normal meter reading with a high display suggests sensing drift.
Deceleration Overvoltage: Ramps, Loads, and Braking
The most common decel cause is a VFD deceleration time too short for the load inertia. The drive tries to stop faster than the load energy can be absorbed.
Start with a no-cost test. Double or triple the decel time and watch the DC bus during a stop. High-inertia fans, flywheels, and large pumps may need much longer ramps.
Overvoltage control also matters. Many drives have an overvoltage controller, regen-stall function, or brake-chopper setting. On Yaskawa drives, parameters such as C1-02 for decel time and L3-04 for stall prevention during decel are common checks, as shown in the Yaskawa L1000H quick start guide. The equivalent VFD overvoltage control parameter on other brands may be labeled OV control, regen stall, or brake-chopper enable.
If you need help matching ramp and braking settings to the load, our VFD parameter settings guide covers the commissioning side in more detail.
Braking Resistor and Chopper Diagnosis
The braking path gives regenerative energy somewhere to go. When the bus rises to the brake-on level, a chopper connects the resistor across the bus and turns energy into heat.
A failed braking path can look exactly like a short-ramp problem. Check the resistor and chopper before you keep adding decel time.
Open Resistor, Loose Terminals, and Drift
Measure the resistor with power isolated and the bus discharged. The value should be close to the nameplate, commonly within about 5%.
An open resistor gives no braking at all. Loose PB/+ or BR terminals can do the same. Heat damage can also drift resistance high enough to reduce braking.
Failed Braking IGBT or Chopper
If the resistor measures correctly but the bus still spikes, the chopper may not be turning on. A failed braking IGBT, gate drive fault, or control setting can block the path.
Do not keep cycling the drive into repeated OV trips. Confirm the brake-on level, the chopper command, and the resistor connection first.
Resistance Too High vs Too Low
Resistance too high reduces braking current, so the bus climbs during decel. Resistance too low is worse. It can pull excessive current through the braking chopper and damage the IGBT.
The Industrial Monitor Direct resistor sizing guide makes this point clearly: lower ohms are not “stronger braking” beyond the drive’s rating.
Braking Resistor Sizing Basics
Good VFD braking resistor sizing uses three inputs: ohms, watts, and duty cycle. Ohms must stay inside the drive’s allowed range. Watts must cover the braking power with margin for heat.
Duty cycle matters on cranes, elevators, centrifuges, and frequent-stop lines. A resistor that survives one stop per hour may fail on one stop per minute.
Supply Voltage, Power Quality, and DC Bus Hardware
Regeneration is not the only energy source. High incoming voltage can push the bus up before the motor even regenerates.
Measure line voltage at the drive input terminals under load, not just at no load. A 460 V drive sitting on a 490 V line has much less headroom before OV.
Line reactors, DC chokes, and surge protection can reduce transients from utility switching, nearby contactors, and harmonic-rich systems. They do not replace a braking resistor, but they can remove nuisance spikes.
Aging DC bus capacitors are another quiet cause. High ESR reduces filtering, so the bus ripple rises and the drive becomes more trip-sensitive. If a drive worked for years and now trips after warm-up, capacitors move up the list.
Motor, Cable, and Mechanical Causes
Long motor leads can create reflected-wave voltage spikes at the motor terminals. Those spikes stress insulation and can also disturb bus behavior on some systems.
Check output terminations, shields, and grounding. Megger the motor and cable if insulation is suspect, and compare with your insulation policy before returning the drive to service.
Mechanics matter too. A downhill conveyor, a hoist with no counterweight, or an unloader can drive the motor even when the command looks normal. If the OV follows a mechanical state, fix the energy at the source with braking hardware, ramp logic, or mechanical damping.
When the symptom changes from an OV trip to a current trip, the path shifts. Our VFD overcurrent fault guide covers that branch.
Brand-Agnostic Checks for a VFD Overvoltage Fault
The names change, but the checks do not. Use this table to find the right setting on almost any drive.
| Check | What to Verify | Typical Parameter Names |
|---|---|---|
| Decel time | Long enough for load inertia | Decel time, C1-02, C1-08, 2203/2206, 3-81 |
| Overvoltage control | Set correctly for chopper use | OV control, 2005, L3-04, Regen stall |
| Brake function | Chopper and resistor enabled | Brake chopper, DB resistor, Brake function |
| Input voltage | Matches actual supply | Input voltage, E1-01, Rated voltage |
| DC bus monitor | Display matches meter | DC bus, 0107, Bus voltage |
| Braking level | Brake-on voltage correct | Braking level, DB start level |
| Ramp shape | S-curve if needed | S-curve, Accel/decel mode |
ABB drives often expose overvoltage control and decel settings in the 20xx and 22xx parameter groups. Yaskawa uses C1 for ramps, E1 for input voltage, and L3 for stall and protection behavior.
Danfoss, Siemens, Allen-Bradley PowerFlex, Mitsubishi, and Schneider drives use different labels. Ask the same five questions: how long is the decel, where does regen energy go, is the supply high, is the bus reading real, and is the braking path working.
Repair, Replace, or Escalate
Parameter changes are enough when the OV is clearly tied to a short ramp, disabled regen control, or an input-voltage mismatch. Always back up parameters before changing them.
Add or resize braking hardware when the load is overhauling or the stop duty is frequent. Choose the resistor by ohms, watts, and duty cycle, then confirm the chopper setting for that drive.
Repair DC bus or sensing components when the OV appears at power-up, the bus reading disagrees with a meter, or capacitors show heat and age. If you are unsure whether the fault is drive, load, or supply, contact the Shandong Electric engineering team with the trip-timing notes and bus readings.
For heavy regeneration, a regenerative drive can make more sense than repeated resistor upgrades. It sends energy back to the line instead of burning it as heat.
Preventing VFD Overvoltage Faults
The cheapest OV fault is the one that never happens. A few commissioning and maintenance habits prevent most of them.
- Set decel time for the real load inertia, not the default value.
- Verify overvoltage control, regen-stall, and brake-chopper settings before handover.
- Confirm braking resistor ohms, watts, terminal torque, and duty cycle.
- Measure input voltage under load and correct high or unstable supply conditions.
- Inspect capacitors, fans, and power terminals on older drives.
For a full schedule, see our VFD preventive maintenance checklist. Pair it with the parameter guide so every stop, ramp, and braking setting matches the application.
FAQ
What causes a VFD overvoltage fault?
It happens when the DC bus exceeds the drive limit. The usual source is regeneration during deceleration, but high supply voltage, failed braking hardware, capacitor aging, and sensing faults can also cause it.
Why does my VFD trip on overvoltage during deceleration?
The motor becomes a generator while the load keeps it turning. Energy flows back into the DC bus faster than the drive can absorb, so the bus rises until the drive trips.
Can a bad braking resistor cause a VFD overvoltage fault?
Yes. An open, loose, drifted, or undersized resistor removes the braking path. Resistance below the drive minimum can also damage the braking chopper.
Why does my VFD show overvoltage at power-up?
The motor is not running, so braking is not the cause. Suspect DC bus sensing, divider resistors, reference drift, capacitors, or rectifier hardware.
How do I size a braking resistor for a VFD?
Use ohms, watts, and duty cycle. Keep ohms inside the drive range, size watts above braking power with heat margin, and rate the resistor for how often the load stops.
Can high input voltage cause a VFD overvoltage fault?
Yes. A supply above the drive’s rated input reduces bus headroom. Measure voltage at the drive terminals under load and correct transformer taps or supply issues if needed.
What does ABB 3210 DC overvolt mean?
It means the DC bus exceeded the overvoltage threshold. Check decel time, overvoltage control, braking hardware, and the actual bus reading against the display.
Should I enable overvoltage control or stall prevention?
Often yes for decel trips, but not blindly. Some brake-chopper setups require specific settings, so follow the drive manual and confirm the braking path first.
Conclusion
A VFD overvoltage fault is an energy-path problem before it is a parts problem. Check trip timing first, then the DC bus, then the ramp, braking, supply, and hardware.
Most decel trips end with a longer ramp, corrected overvoltage control, or a verified braking resistor path. Power-up trips point the other way, toward sensing and DC bus components.
