High Voltage VFD Harmonics: Causes, Standards & Mitigation Guide

High-voltage VFD harmonics are unwanted frequency components generated when a variable-frequency drive converts fixed-frequency grid power into variable-frequency motor power. Left unmanaged, they can overheat transformers, damage capacitors, shorten motor life, and even cause utility penalties.

A 6.6 kV pump drive in a cement plant looked perfect on paper. It saved 25% on energy within the first year. Then the facility started losing power factor correction capacitors every few months. The root cause was not the drive itself. It was the harmonic currents the drive injected back into the supply, which resonated with the capacitor bank. That single oversight erased most of the savings.

This guide explains what high-voltage VFD harmonics are, where they come from, how standards limit them, what they do to your equipment, and how to mitigate them without over-engineering the solution.

Key Takeaways

• High voltage VFD harmonics come in two forms: input harmonics fed back to the grid, and output harmonics delivered to the motor.
• A standard 6-pulse rectifier can produce input current THD above 80%; 12-pulse and 18-pulse rectifiers, active front ends, and active filters reduce it.
• IEEE 519 limits harmonic distortion at the point of common coupling, not at the drive terminals.
• Output harmonics cause motor heating, dV/dt stress, and bearing currents; output reactors or dV/dt filters protect the motor.
• Modular cascaded H-bridge drives often achieve input THD below 3% through phase-shifting transformers.

What Are High Voltage VFD Harmonics?

A harmonic is a sinusoidal voltage or current whose frequency is an integer multiple of the fundamental grid frequency. On a 50 Hz system, the 5th harmonic is 250 Hz, the 7th is 350 Hz, and the 11th is 550 Hz.

High voltage VFD harmonics are these extra frequency components produced by medium voltage or high voltage drives. In industrial terminology, “high voltage” usually means medium voltage: 2.3 kV to 13.8 kV. The same principles apply, but the equipment is larger and the consequences of poor design are more expensive.

For a foundation on voltage classes and drive selection, see our complete guide to high voltage VFDs.

Input Harmonics vs Output Harmonics

Input harmonics flow from the drive back into the power system. They are caused by the non-sinusoidal current the rectifier draws from the grid. Output harmonics are created by the PWM switching pattern of the inverter stage and travel down the motor cable to the motor.

Both matter, but they require different mitigation strategies. Input-side filters or multi-pulse rectifiers clean up the grid current. Output reactors or dV/dt filters protect the motor.

THD, TDD, and Power Factor

Total Harmonic Distortion (THD) compares the combined magnitude of harmonic components to the fundamental. It is usually expressed as a percentage.

Total Demand Distortion (TDD) is similar, but it normalizes harmonic current against the maximum demand load current at the point of common coupling. IEEE 519 uses TDD for current limits because it reflects real operating conditions better than a momentary THD snapshot.

Power factor is also affected. Harmonic currents add reactive power demand and reduce true power factor. A drive that appears efficient on paper can still increase your utility bill if it worsens plant power factor.

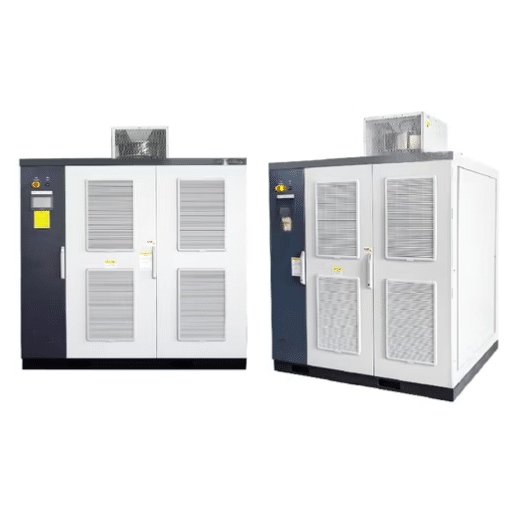

How High Voltage VFDs Generate Harmonics

Diode Rectifier Front Ends

Most VFDs use a diode bridge to convert AC to DC. Diodes conduct in short bursts near the voltage peak, drawing current in pulses rather than a smooth sine wave.

A 6-pulse diode rectifier produces characteristic 5th, 7th, 11th, 13th, and higher-order harmonic currents. A standard 6-pulse rectifier without mitigation can produce input current THD of 80% or more. The 5th harmonic is often the largest single component. This is why a single large drive can distort voltage across an entire plant bus.

PWM Inverter Output

The inverter stage switches DC voltage rapidly to approximate a variable-frequency sine wave. The result is a series of fast voltage steps with high dV/dt. The motor sees the intended fundamental waveform plus switching-frequency components and reflections.

Output harmonics do not usually cause utility compliance problems, but they cause motor problems. High dV/dt stresses winding insulation, and common-mode voltage can drive currents through motor bearings.

Why Medium Voltage Is Different

At medium voltage, drive topologies differ from low voltage. Cascaded H-bridge, 3-level NPC, and modular multilevel converters all handle harmonics differently. Multi-pulse transformers and modular cell arrangements are common because they manage voltage and harmonics simultaneously.

Standards and Limits

IEEE 519

IEEE 519-2022 limits voltage and current harmonic distortion at the point of common coupling. The limits depend on the ratio of short-circuit current to load current. A weak grid or high-impedance source means stricter limits.

For systems with a short-circuit ratio above 20, IEEE 519 typically limits current TDD to 5%. Voltage THD limits are usually 5% at medium voltage, with not more than 3% for any single harmonic.

The standard applies at the point of common coupling, not at the drive terminals. That distinction matters. A drive can have high THD internally, yet the plant as a whole can still comply if the PCC is far enough upstream or if mitigation is installed.

IEC 61000-3-6

IEC 61000-3-6 provides a framework for evaluating harmonic emissions from distorting loads in public networks. It is widely referenced outside North America. The approach is similar to IEEE 519 but includes planning levels and compatibility levels for different voltage classes.

Local Grid Codes and Utility Contracts

Some utilities impose their own harmonic limits as part of interconnection agreements. These can be stricter than IEEE 519. Always check the utility contract before specifying mitigation. Compliance is not just a code issue; it can be a contractual one.

Effects of VFD Harmonics on Plant Equipment

Transformer Heating and Derating

Harmonic currents increase I²R losses in transformers because skin effect raises effective conductor resistance at higher frequencies. Eddy current losses also rise.

A transformer supplying harmonic-rich loads may need to be derated by 10-30%. In a steel mill in Turkey, two 6.6 kV fan drives were fed from a shared 2 MVA transformer. The transformer ran hot even at only 70% of its nameplate load. Harmonic analysis showed current THD above 35%. Adding a 12-pulse upgrade reduced THD to 12% and allowed the transformer to return to rated operation.

Capacitor Bank Resonance

Capacitor banks used for power factor correction are the most common victims of VFD harmonics. Capacitors present low impedance at high frequencies, so harmonic currents flow into them instead of the load. If the capacitor bank resonates with the system inductance near the 5th or 7th harmonic, current can amplify dramatically.

The cement plant example is a textbook case. The capacitors were sized for 50 Hz correction. At 250 Hz, their impedance was low enough to attract harmonic current and overheat. Detuned or harmonic-rated capacitor banks avoid this by adding series reactors that shift the resonance away from dominant harmonics.

Motor Heating from Output Harmonics

Output harmonics increase motor losses. PWM waveforms contain high-frequency components that do not produce useful torque but create additional heating in the stator windings and rotor.

Inverter-duty motors with higher insulation ratings and separate cooling are designed for this. Standard motors may overheat when driven by VFDs at low speeds.

Bearing Currents and dV/dt Damage

High dV/dt and common-mode voltage generate shaft voltages. When the voltage exceeds the bearing lubricant film insulation, current discharges through the bearing races. Over time this causes pitting, fluting, and premature bearing failure.

The standard defenses are shaft grounding rings, insulated bearings, common-mode chokes, and dV/dt filters. In large high voltage motors, bearing protection should be part of the drive package from the start.

Harmonic Mitigation Techniques

6-Pulse Rectifier with DC Choke

The simplest mitigation is a DC link choke or AC line reactor. It smooths the current pulses and can reduce THD from 80% to roughly 35-45%. It is cheap and effective for small loads, but usually not enough for large medium voltage drives or strict utility limits.

12-Pulse and 18-Pulse Rectifiers

Multi-pulse rectifiers use phase-shifting transformers with multiple secondary windings. A 12-pulse arrangement uses two 6-pulse bridges fed 30 degrees apart. The 5th and 7th harmonics cancel on the primary side, leaving mainly 11th, 13th, and higher. Input current THD typically drops to 10-15%.

An 18-pulse rectifier adds a third bridge and can reduce THD to 6-10%. The trade-off is a larger, more expensive transformer and more complex commissioning.

Active Front End Converters

An active front end VFD replaces the diode rectifier with an IGBT-based active rectifier. It draws nearly sinusoidal current from the grid and can achieve input THD below 5%. AFE drives also provide regenerative braking capability and controllable power factor.

The downside is higher cost, more complex control, and sensitivity to grid conditions. AFE drives are most attractive when regeneration, strict THD limits, and space savings are all required.

Passive Harmonic Filters

Passive filters are tuned LC circuits placed near the drive. They provide low impedance at a specific harmonic frequency, diverting current away from the grid. A 5th harmonic filter is common because the 5th is usually the largest component.

Passive filters are cost-effective for single drives but must be carefully tuned. An improperly tuned filter can create new resonance problems. They also occupy significant electrical room space.

Active Harmonic Filters

Active filters measure harmonic currents and inject compensating currents of equal magnitude but opposite phase. They adapt automatically to changing load conditions and can address multiple harmonic orders simultaneously.

Active filters are ideal when many drives share a bus or when loads change over time. They are more expensive than passive filters but avoid resonance risk and do not require retuning.

Phase-Shifting Transformers in Modular Drives

Modular cascaded H-bridge drives use phase-shifting transformers with many secondary windings. Each cell is fed at a different phase angle, so harmonics cancel at the primary. This is why modular CHB drives can achieve input current THD below 3% without external filters.

For more on this topology, see our article on modular VFD systems.

Choosing the Right Mitigation Strategy

The best mitigation method depends on THD targets, drive count, load profile, available space, and budget. There is no universal answer.

Method	Typical Input Current THD	Best For	Main Trade-Off
6-pulse + reactor	35-45%	Small drives, loose limits	Low cost, limited performance
12-pulse rectifier	10-15%	Single large drives	Large transformer cost
18-pulse rectifier	6-10%	Strict limits, single drive	Higher cost and complexity
Active front end	<5%	Regeneration + low THD	Higher purchase price
Passive filter	5-10%	Single known harmonic dominant	Resonance risk if mistuned
Active filter	<5%	Multiple drives, changing loads	Higher cost but flexible
Modular CHB drive	<3%	New medium voltage installations	Requires purpose-built transformer

When Active Filters Beat Multi-Pulse Transformers

Active filters win when the plant has many small or medium drives on a common bus, or when loads change frequently. A single active filter can correct harmonics from multiple sources, whereas a multi-pulse transformer only fixes its own drive.

When Multi-Pulse Is Enough

A 12-pulse or 18-pulse rectifier is usually the most economical choice for one or two large high voltage drives in a plant with otherwise clean power. It is simple, reliable, and well understood by maintenance teams.

When Output Protection Matters More

In some installations, the drive meets IEEE 519 but the motor still fails. In those cases, focus on output side protection. Add an output reactor, dV/dt filter, or sine-wave filter. Verify motor insulation rating per NEMA MG1 Part 31 for inverter-duty service.

How to Measure and Audit VFD Harmonics

Instrumentation

A power quality analyzer with true-RMS capability and harmonic analysis is essential. Clamp-on current transformers should be sized for the full-load current. Voltage connections must be made safely, preferably at existing metering points.

Record at least 30 cycles at steady load for utility compliance measurements. IEEE 519 uses a one-week measurement basis for TDD, so a single snapshot may not be enough for a formal study.

Where to Measure

• At the drive terminals: shows what the drive produces.
• At the transformer secondary: shows what the transformer sees.
• At the point of common coupling: shows what the utility sees and what matters for compliance.

Baseline Audit Checklist

1. Record voltage and current waveforms at full load.
2. Capture harmonic spectrum through at least the 25th order.
3. Measure THD and TDD.
4. Check power factor and displacement power factor.
5. Note transformer loading and temperature.
6. Inspect capacitor banks for swelling, blown fuses, or overheating.
7. Document motor cable length and type.
8. Check for existing filters or reactors.

Reading the Spectrum

In a 6-pulse drive, expect large 5th, 7th, 11th, and 13th harmonic currents. If 3rd or 9th harmonics are unexpectedly high, suspect single-phase loads or transformer connection issues. If voltage THD is high while current THD is moderate, the grid impedance at the PCC is likely high.

Specification Checklist for Low-Harmonic High Voltage Drives

When specifying a high voltage VFD, include harmonic performance in the data sheet requirements:

• Required input current THD or TDD at full load.
• Measurement point: drive terminals, transformer secondary, or PCC.
• Applicable standard: IEEE 519, IEC 61000-3-6, or utility contract.
• Short-circuit ratio or available fault current at the PCC.
• Existing power factor correction capacitors and their tuning.
• Motor cable length and whether output filtering is needed.
• Ambient conditions and electrical room space for filters or transformers.

A complete specification prevents vendors from quoting drives that meet a loose internal test but fail at your actual PCC.

For installation and site-prep guidance, see our article on high voltage VFD installation requirements.

Common Harmonic Mitigation Mistakes

Designing for THD Instead of TDD

THD is easy to measure but can be misleading at partial load. IEEE 519 compliance is based on TDD at the PCC. Specify and verify TDD, not just a snapshot THD number.

Ignoring Resonance

Adding capacitors or passive filters without harmonic analysis can create resonance. Always model the system impedance and check for resonance near dominant harmonics.

Forgetting the Output Side

Meeting input-side standards does not protect the motor. Specify output reactors, dV/dt filters, or motor insulation upgrades as needed. NEMA MG1 Part 31 defines inverter-duty motor requirements.

Specifying AFE Without Checking Grid Stability

Active front end drives are sensitive to grid voltage imbalance and harmonic background. In weak grids, AFE drives may not perform as expected. A site-specific grid study is recommended.

Treating Mitigation as an Aftermarket Add-On

Retrofitting harmonic mitigation is almost always more expensive than designing it in. Plan for harmonics during the initial drive specification and electrical room layout.

High Voltage VFD Harmonics and System Efficiency

Mitigation equipment consumes energy too. A 12-pulse transformer has losses. An active filter draws power. These losses are usually small compared with the energy saved by the drive, but they should be included in lifecycle cost calculations.

A well-designed harmonic mitigation strategy can also improve true power factor, reducing demand charges. For a deeper look at VFD losses and efficiency, see our article on high voltage VFD efficiency.

FAQ

What are high voltage VFD harmonics?

High-voltage VFD harmonics are unwanted voltage and current frequency components generated by medium-voltage or high-voltage variable-frequency drives. They are integer multiples of the fundamental grid frequency and can affect transformers, capacitors, motors, and utility compliance.

What causes harmonics in VFDs?

The diode rectifier front end draws non-sinusoidal current pulses, creating input harmonics. The PWM inverter switching creates output harmonics and high dV/dt at the motor terminals.

What is the difference between THD and TDD?

THD is total harmonic distortion normalized to the fundamental. TDD is total demand distortion normalized to the maximum demand load current. IEEE 519 uses TDD for current distortion limits.

What is IEEE 519 for VFD harmonics?

IEEE 519 limits voltage and current harmonic distortion at the point of common coupling. Limits depend on system voltage and short-circuit ratio.

How can I reduce harmonics from a high voltage VFD?

Common methods include line reactors, 12-pulse or 18-pulse rectifiers, active front ends, passive harmonic filters, active harmonic filters, and modular cascaded H-bridge topologies.

When should I use an active front end VFD?

Use an AFE drive when you need very low input THD, regenerative braking, controlled power factor, or limited electrical room space.

What is a 12-pulse VFD?

A 12-pulse VFD uses two 6-pulse rectifier bridges fed by a phase-shifting transformer. The 5th and 7th harmonics cancel, reducing input current THD to roughly 10-15%.

How do harmonics damage capacitors?

Capacitors attract harmonic currents because of their low impedance at high frequencies. If the capacitor bank resonates with system inductance, current and voltage can amplify, causing overheating and failure.

What is the best way to measure VFD harmonics?

Use a power quality analyzer with harmonic measurement capability. Record voltage and current at the drive terminals, transformer secondary, and point of common coupling. For compliance, measure TDD over a representative operating period.

Do modular VFD systems reduce harmonics?

Modular cascaded H-bridge drives can achieve very low input current THD, often below 3%, because phase-shifting transformers cancel harmonics across many cells.

Conclusion

High voltage VFD harmonics are a system-level design problem, not just a drive specification. A drive that saves energy can still create expensive problems if its harmonic signature is ignored. The right mitigation strategy depends on the distortion target, the number of drives, the grid strength, and the motor protection needs.

Start by measuring at the point of common coupling, not just the drive terminals. Choose mitigation that matches the actual problem: multi-pulse rectifiers for single large drives, active filters for mixed loads, and modular topologies when very low THD is required. Do not forget the output side. Motor insulation, dV/dt filters, and bearing protection are just as important as input-side compliance.

If you are specifying a high voltage VFD project, contact the Shandong Electric engineering team. We can help you model harmonics, select the right topology, and design a system that meets IEEE 519 or your local utility requirements without unnecessary cost.
