VFD Bearing Damage & Protection: Electrical Erosion
Variable Frequency Drives (VFDs) have become a necessity in modern industrial applications, offering precise motor control, improved energy efficiency, and reduced operational costs. However, besides the good points they come with, VFDs, at times, might bring up an important issue, known as electrical erosion in motor bearings, which is hard to ignore. This issue, if not taken care of, can have a significant impact on motor performance, the duration of operation of equipment, including very high costs of maintenance owing to downtime. One of the first steps that this article will take is a detailed examination of the electrical elimination and how it is caused by VFDs. Then, of course, it will be the direct effect on bearing integrity and, most significantly, the many methods that can be employed to stop the occurrence or mitigate it. It does not matter whether you are a maintenance worker or an engineer, but having a thorough understanding of these aspects is the primary condition for the safety of the plant and long-term reliability of the equipment— and the most common methods of doing so would be to keep on reading to get the inside scoop and get all the necessary information you need.

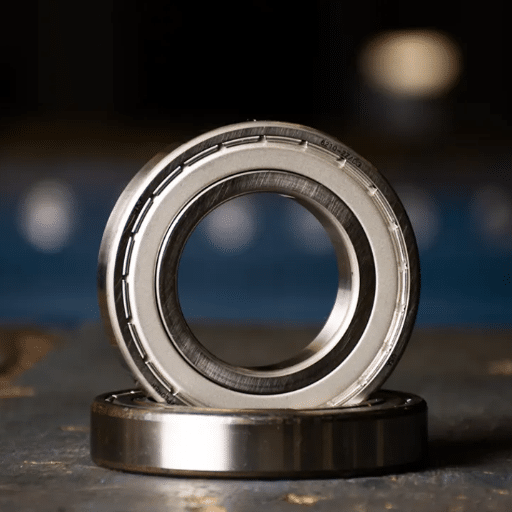

Understanding VFDs and Their Impact on Bearing Damage
Variable Frequency Drives (VFDs) are broadly used in the industry to regulate motor speed and enhance energy efficiency. Nevertheless, they may inadvertently cause bearing damage by the electrical discharge currents. The latter are generated by the high-frequency VFD switching, which inducts voltage in the motor shaft. When such voltage surpasses the dielectric strength of the bearing grease, it will discharge through the bearings thus causing the electrical erosion. In the end, this erosion results in fluting, pitting, and untimely failure, the motor reliability drops drastically. There are some possible solutions such as applying grounding methods properly, insulated bearings, or the utilization of shaft grounding rings that will effectively protect the bearings and expand the upcoming years of into the operational lifespan. Detecting and eliminating these damaging effects is a very serious matter in ensuring high efficiency of machines as well as in avoiding equipment breakdown accompanied by high related costs.
What are Variable Frequency Drives (VFDs)?
Frequency Control Devices are devices of electronic type that are used in controlling the speed, direction, and torque of AC motors by changing the frequency and the voltage of the power given to the motor. The control is quite exact which lead to a lot of advantages like economy of energy, lesser wear and tear and a higher efficiency rate for the operation. Matching the speed of the motor with the load required means that the consumption of power is optimally achieved and this is very much required in industries such as the HVAC, conveyor, and pump operations.
Modern VFDs are made to use highly developed semiconductor technology and software to provide not only very efficient but also all needed features like fault discovery, remote control, system integration through communication protocols (e.g., Modbus, Ethernet/IP). What is more, they are usually equipped with basic safety gadgets like overloading and safely avoiding the spikes that everyone was aware of., which includes electrical and mechanical stress during the start-up. The fact that the use of VFDs is increasing is very much connected to the need for energy-efficient lifestyle or other more drastic solutions like sustainability, hence, they are very much in line with global initiatives on lessening energy consumption and carbon emissions.
How VFDs Cause Bearing Damage
The main reason for bearing damage due to the Variable Frequency Drives (VFDs) is the high-frequency electrical currents caused by voltage imbalances and switching frequencies which are typically present in the operation of these devices. These currents, called shaft voltages very often, may travel through the motor bearings in case the adequate measures to control them are missing. Continuous discharges of these currents over a period of time can lead to electrical discharge machining (EDM) effects that cause pitting, fluting, or scoring on the bearing surfaces. As a result, the bearing surfaces of the equipment are damaged, causing additional friction, vibration, and shortened life of the equipment.
The phenomenon is mainly due to the common-mode voltages produced by the pulse-width modulation (PWM) feature of the VFD outputs, as one of the principal underlying mechanisms. These voltages promote the capacitive coupling between the rotating part of the motor and the stationary part, eventually forming a way for the current to enter the motor shaft and bearings. Investigations have found that such incidents usually coincide with the frequencies over 2 kHz; therefore, the effect is more extreme in the case of modern VFDs with the switching frequencies being up to the level of high-speed control of the motors.
The insulation of bearings, the use of shaft grounding rings, and the replacement of the bearings with the ceramic ones are proven to be the three highly effective methods to stop or even completely remove the route for the harmful currents. On the other hand, following the right installation procedures, which include the use of proper cables and the grounding system, is also very important for eliminating common-mode voltage and the bearing damage that might result. Motor longevity and reliability are significantly improved by fully grasping the above relationships which takes one through the nature of VFD-driven systems.
Common Types of Bearing Damage in Motors
Mechanisms of Bearing Damage in Electric Motors
Bearings in electric motors are exposed to a variety of factors that can negatively affect their performance and life. The significant problems are, for example, bad oiling, dirt (foreign particles), bad adjustment, electric wear and fatigue.
- Improper Lubrication: Either mislubrication or too much lubrication will interfere with the fine function of the bearing and therefore the bearing in friction and heating will overload and, in turn, wear out.
- Contamination: The bearing cut will be exposed to the contaminant mist or water, which by itself will cause bearing surface damage in the forms of pits, crevices or scratches.
- Misalignment: The sense of uneven stress will be produced in the bearings through the wrong shaft alignment, which is the direct reason of the bearing malfunction, vibrations, and noise during operation.
- Electrical Erosion: The bearing area can get exposed to the current flowing by mistake from one side to the other, and in turn causing the destruction of the material and the creation of small pockets after a while.
- Fatigue: The area where the load is applied could have weakened material properties as a result of long-time use, leading to crack formation, or even complete loss of material like the rolling elements and raceways.
To prevent these issues, it is recommended to follow the best practices laid in place by making sure the lubrication is not too high, the installation environment is vacuumed during alignment of the shafts, the motors are grounded properly to stop electrical discharges, and also get the bearings that are the best match for the required load of the motor. Well, there is also the other preventive method to employ which is condition monitoring that can be very helpful in identifying the wear and tear early.
Voltage Spikes and Their Effects on Bearings
Spikes in voltage, often generated by VFDs (Variable Frequency Drives) in electric systems, when not stopped, can cause big harm to motor bearings. The high-frequency currents are induced in the motor shaft and can go through the lubrication film to cause the electrical discharge machining (EDM). EDM will start with the voltage reaching the limits of the lubricant’s dielectric strength, and then, micro-arcs will be created between the rotating components and the raceway. Eventually, the bearings can have surface pits and fluting that result in the bearing failing before its time.
Research has shown that bearings which are subject to frequent voltage spikes but are not adequately protected have much shorter lives. Solutions for this problem are to employ insulated bearings, earth-ground rings, and high-quality lubricants that are able to bear the electric stress. Moreover, developed system setups, such as the use of sinusoidal filters or protection against VFD cables’ improper grounding and non-screening, can reduce and prevent the appearance of voltage spikes. It is very important to do preventive maintenance and have frequent electrical tests which can reveal early signs of EDM damage, and thus protect the motor, and lengthen the life of the equipment hundreds of times.
The Role of Induction Motors in Bearing Damage
Induction motors play a key role in many different industries because they are very efficient and long-lasting. But sometimes, they are being held responsible for the wearing of the bearing under specific circumstances. Bearing deterioration is one of the most common reasons for the damaging of the shaft bearings in these motors. The fault currents are the result of the same motor functionalities such as the switching operations taking place in the variable-frequency drives, leading to the generation of high-frequency voltages across the motor shaft. The moment these voltages get beyond the bearing lubricants’ breakdown strength, they will lead to the continuous sparking as well as the corrosion of bearing surfaces, the bearing wear rate will linearly increase and the component lifetime will be reduced.
Besides the electric field-related factors, there are also several mechanical factors that significantly contribute to bearing damage. The bearings very frequently get misaligned, the installation is not correct, and the loads supported on the shafts are much high and this all results in undue stress on the bearings. Besides, lack of lubrication only increases surface erosion. The bearing life is also shortened due to different environmental factors such as dust, moisture, or weak chemicals that gradually invade the bearing but also by being the source of corrosion at the entrance of the bearing. Hence, even if one may not be directly the reason for the other, they both make their own little contribution and the calculations in the end come to a much larger cause is the motor itself that breaks down.
In the case of induction motors, it is very important to use sophisticated preventive measures to reduce bearing damage. For example, the use of insulated bearings, the presence of shaft grounding devices, or the employment of dielectric lubricants can all contribute to the war on electrical erosion. Moreover, calibrated alignment tools and professional vibration analysis are other instrumental factors to ensure mechanical reliability to the best. When the factors of both mechanical and electrical stresses are handled this way, the responsiveness of and the operational efficiency of induction motors are assessed much earlier and more conveniently. Thus, the situation implies unplanned downtimes and their related costs being minimized.
Comparing AC Motors and AC Induction Motors
Preventative Measures for Motor Bearing Protection
- 1
Proper Lubrication
Ensure bearings are lubricated as per the instructions given from the manufacturer. Either too much lubrication or too little lubrication can cause the bearings to overheat and produce more friction. - 2
Alignment and Installation
Make sure that the motor and bearings are well aligned while being installed to minimize both stress and wear. Non-alignment can lead to an excessive level of vibration and early stoppage. - 3
Shaft Grounding
Put in grounding devices (which is quite obvious as preventive measures) so that any electrical discharge damage due to the excess current(most likely in the form of the bearings being eroded) might be controlled. - 4
Contamination Prevention
Provide a good seal to the bearings to keep the particulates like dirt, moisture, and particles out, hence preventing abrasion and corrosion. - 5
Regular Monitoring and Maintenance
The necessary maintenance involved in bearing inspection is to identify the wear signs, unusual noise or vibration. On the identification of initial symptoms, maintenance or rehabilitation can take place.
Best Practices for Using a VFD
- 1
Proper Sizing and Selection
Ensure that the Variable Frequency Drive (VFD) has the right capacity to match the power and load requirements of the motor. Performance and efficiency can be negatively affected if the VFD is undersized or oversized, thus leading to potential overheating or under-utilization of resources. - 2
Installation Considerations
Follow the recommended procedure when installing the VFD, this also involves good ventilation to disperse heat and prevent overheating issues. The VFD should not be placed in areas with much dust, water, or excessive temperature swings unless it is rated with a protection rating such as IP54 or IP65, as the case may be. - 3
Harmonic Mitigation
Reduce the total current distortion of the electrical system through harmonic filters or line reactors. Harmonics that are too high can cause the equipment to work at its best, reduce power consumption or result in a short equipment life span. - 4
Shielding and Grounding
Use screened cables and correct earth bonding methods to reduce the electromagnetic interference (EMI) emitted. The installation of shielded cables and the correct earthing methods are vital especially if there is electronic equipment close to the application. - 5
Setting Parameters Appropriately
The misconfiguration of VFD parameters, i.e., acceleration and deceleration times, torque control, and overload protection, will not match motor and load requirements and this will cause ineffective operation or mechanical strain. - 6
Regular Maintenance
Make it a regular activity to look out for signs of wear, overheating, or damage of electrical parts. Also, clear the cooling fans and heat sinks to have the best cooling possible and replace broken components as needed.
Monitoring Techniques to Prevent Bearing Failure
Vibration analysis method is one of the most important and commonly used before indicators of a failure of a bearing is present. The bearings have their own vibration pattern when they are rotating, and if the vibration pattern is different from what is expected, it may be a sign of a problem. Consequently, vibrations can be caused by reasons like misalignment, imbalance, and even damaged surfaces. Vibration analysis is also done by technicians to find the faults. The vibrations are continuously detected by the sensors and monitored all the time. Vibration detection is a significant factor in the effort to save on expensive repair costs. By the time vibration reaches the warning level, the cost of repair is usually about four times the cost of what it would have been if diagnosed earlier.
The efficient way to detect bearing issues is through temperature monitoring. The early sign of bearing problems related to overheating is mostly due to improper lubrication, increased friction or wear. Sensors placed adjacent to the bearing housings and cameras for the thermal energy system equipped with thermal camera technology are often used for periodic inspections. Creating the standard temperature profile of the system in the operating norm is crucial to have a comparison when it comes to detecting abnormalities.
Technologies for Bearing Protection
There are a few advanced technologies that are designed to help provide the perfect level of bearing protection and to make it very much reliable. These are:
Sealed Bearings
These are grease-filled and cover-sealed bearings to protect against contaminants such as dust, dirt, and moisture, thus decreasing the need for wear and maintenance.
Condition Monitoring Systems
By having vibration, temperature, and noise sensors in place, the system will come up with real-time data to detect premature bearing failure signs, thus giving the opportunity for a quick and efficient solution in advance.
Automatic Lubrication Systems
Under this system, the lubricant is supplied in set amounts at specified intervals thus preventing the likely errors of too little or too much/lubricant, which are a major cause of the bearing not performing its best.
Protective Coatings
Bearings in harsh conditions can be protected by using any of the anti-corrosion coatings or heat-resistant layers and thus their lives can be extended.
Making good use of these technologies will surely bring down the time when machinery is not working, cut costs for maintenance, and increase the efficiency of the machinery operation.
Innovative Solutions for Reducing Bearing Fluting
Dealing with bearing fluting is a major issue often due to electrical discharge, and other various operational aspects, which needs a comprehensive strategy that would involve the application of top engineering techniques and materials. One of the most innovative methods is the application of hybrid bearings which are famous for their ceramic rolling elements. These bearings have very high electrical insulation properties, which is why they are the best when it comes to electrical erosion mitigation.
The use of shaft grounding rings together with insulated bearing housings has also shown that the interchangeability of stray electrical currents passing through the bearings is lessened. By grounding the rings, the currents are rerouted away from delicate parts very effectively. On the other hand, the latest in the lubrication industry, the conductive and dielectric grease, can change the nature of the surface by absorbing electrical charge and/or isolating it, thereby reducing more fluting.
Another attractive method consists of incorporating predictive maintenance systems. These technologies are composed of sensors and algorithms that monitor vibration, temperature, and electrical discharge activity on a continuous basis and give out real-time data about the state of the bearings. It is possible to avoid wear and tear along with the prolongation of the machine’s lifespan, by means of early detection of unusual patterns leading to preemptive adjustment.
Advanced Bearings Designed for VFD Applications
It has been acknowledged that motors and bearings in Variable Frequency Drive (VFD) systems are vulnerable to unique electrical issues such as high-frequency currents and voltage imbalances. In the given situation, the ideal method adopted by the industries is the use of advanced and specific bearing designs for VFD applications. These bearings come with a setup that includes the ceramic rolling elements, which are highly electrically resistant and thus diminish the chances of passing current through the bearing. As a result, this avoids the occurrence of electrical discharge damage, i.e., pitting and fluting, which in turn increases the lifespan and overall performance of the product.
Hybrid ceramic bearings, in addition, are fast becoming the bearings of choice in several applications thanks to their better heat and speed resistance. These bearings are commonly partnered with thermochemicals, which are heat-absorbing, leading to better oil survival and prolongation of oil change intervals. Furthermore, additional benefits that come from the use of coatings have been observed; for instance, conductive microfibers or insulation layers applied to the inner and outer rings are used for complete electrical isolation.
The mentioned technological solutions not only influence the reliability of VFD widely but also decrease the cost and power consumption, thereby decreasing downtime and components designed for high demand wherever industrial applications are.
Maintenance Strategies for VFD and Motor Bearings
- 1
Regular Lubrication
Properly lubricate the bearings using the lubricants that are compatible with the conditions of the high-speed, high-temperature environments and other VFD operations, as they are frequently used in order to reduce friction and wear to a minimum based on the manufacturer’s prescriptions. - 2
Periodic Inspection
Carry out inspections on a routine basis so as to be able to find the signs of wear, vibration, or noise in their early stages, which could be an indication that the bearing is getting damaged or is misaligned. - 3
Monitor Electrical Discharge
Employ the likely monitoring devices to detect and attend to the electrical discharges that the VFD-induced currents cause. The use of insulated bearings or shaft grounding devices reduces the chances of occurrence of damage. - 4
Environment Control
In order to do away with the possibility of contaminant agents such as dust, moisture, and chemicals that would reduce the bearing performance in the long run, one should keep the working area free from them and thus, maintain a clean and uncluttered operating environment. - 5
Temperature Monitoring
Temperature monitoring is one of the most important factors in the device. For example, high temperatures usually result from friction between parts in the bearing assembly. - 6
Adherence to Load Specifications
According to the requirements of Maximum Load & Speed, the Motor and the Bearings should always be working within their Load & Speed limits.
Lubrication Best Practices
In the aspect of bearing performance and life, correct lubrication is absolutely crucial situation. In the case of lubricant selection, an important factor to be considered is the load carrying capacity, as well as the operational temperature and the rotating speed. In the case of greases being used, it should have the right oil viscosity and also be thermally stable, that means they can preferably be used in high-speed applications, whereas for low-speed, high-load applications, the bearings may need a special type of lubricant that is designed to withstand the extreme pressure and the wear that comes with it.
Avoiding dry running, which in turn leads to high heat and final bearing failure, is one of the benefits of routine lubrication services. The attention center on the application of automatic lubrication systems for the steadiness and less void in manual application technique of lubricant. The caution is always about impurity-free lubricant involving dirt and water that can lead to scratching and early wearing in parts of the bearing surfaces.
Newly introduced features focus on the use of synthetic lubricants, indicating them as the best due to their being more resistant to oxidation and not degrading, especially when the temperature is high. Moreover, the application of condition-monitoring systems, such as vibration analysis, together with automated lubricant monitoring systems, increases the capacity to reveal and act on lubrication-related problems before they become failures, thereby reducing the need for unscheduled downtime and the costs of maintenance ultimately.
Addressing Motor Bearing Failure Promptly
Motor bearing faults are generally important early alerted and quickly resolved to rectify the operational benefits and minimize the equipment downtimes. Bearing failure is one of the most common types of electrical motor failures and can be caused by a list of factors such as poor lubrication, contamination, misalignment, and heavy loads causing axial or radial changes in the stresses. Investigations suggest more than 50% of motor failures are the results of bearing problems. However, if the appropriate steps are taken, getting information online and taking over real-time control does not matter where the form of the data or content is; technology can be used to transmit it.
The text above describes the positive impact of the use of modern condition monitoring techniques like ultrasound testing and advanced vibration analysis which are able to spot any wear in the bearings and the reasons are mainly high friction or irregular patterns of oscillation. Furthermore, thermal imaging is important in the process of pinpointing the exact point where lubrication is not working, or the bearings are not properly aligned; besides, it also helps in capturing the temperature trends of machines. A good strategy for bearing failure prevention is to include regular detailed inspections in the maintenance program, apart from some other additional intensive procedures, such as the measurement of clearances and the concentricity test.
The application of data-driven maintenance strategies and the capability of obtaining high-quality components made especially for the operational conditions being faced can give a whole new meaning to the concept of prolonging bearing life to the maximum. Besides this, the total cost of ownership and the motor’s performance can be optimized through this approach.
